Tycon Power POE-INJ-1000-DINx Gigabit POE Inserter Shielded mini DIN
Tycon Power
Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.
Share this product:
High Power Shielded Design (uses all 4 pairs)
• 10/100/1000Mb Compatible
• Locking Mini DIN Power DC Connector
• 5VDC to 58VDC Power over Ethernet
• Power On LED indicator
Applications
• Wireless
• Ubiquiti airFiber Antennas
• Security
• HD PTZ Cameras

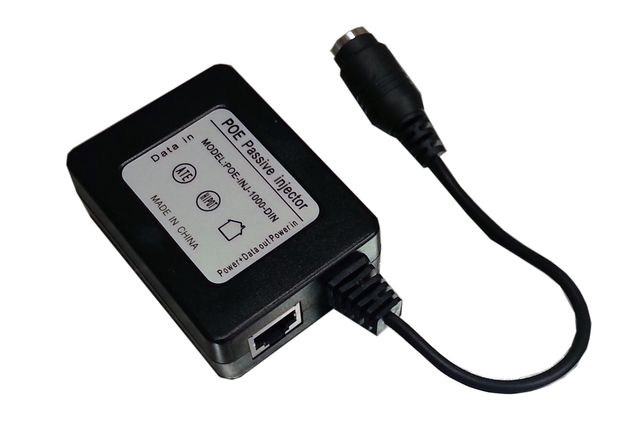

The POE-INJ-1000-DIN is a shielded passive power over Ethernet inserter that is compatible with data speeds up to 1 gigabit. The DC connector is a locking mini DIN type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins 1,2,4,5(+) and 3,6,7,8(-).
The Pinout of the DIN Connector is as follows: (Note: Mating 4P Mini Power DIN Connector CUI Inc. Model:PDP-40)
