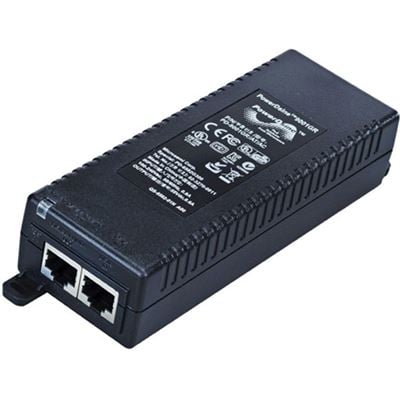

Microsemi PD-9001GR/AC 1 Port 30W PoE+ Injector

Microsemi PD-9001GR/AC 1 Port 30W PoE+ Injector

Overview

Microsemi’s PD-9001GR is a single port, high-power solution for remote powering of current and emerging high power aplications. Generating up to 30W, the PD-9001GR enables remote power for a new range of applications including 802.11n Access Points, pan-tiltzoom (PTZ) cameras and video-phones. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE802.3af. It can power both existing 10/100Base-T network devices and emerging wireless 1000Base-T devices such as WiMAX and wireless IEEE 802.11n access points.

PD-9001GR Features

• • IEEE 802.3at compliant with 2-event classification

• • IEEE 802.3af backward compatible

• • Output power of 30W is guaranteed

• • Supports 10/100/1000Base-T applications

• • Compatible with IEEE 802.3af devices

• • Safe: low power devices receive only the power they

• need

• • Automatic Detection and Protection of non–standard

• Ethernet terminals

• • Compact design fits easily in WLAN Access Point and

• • IP Cameras installations
