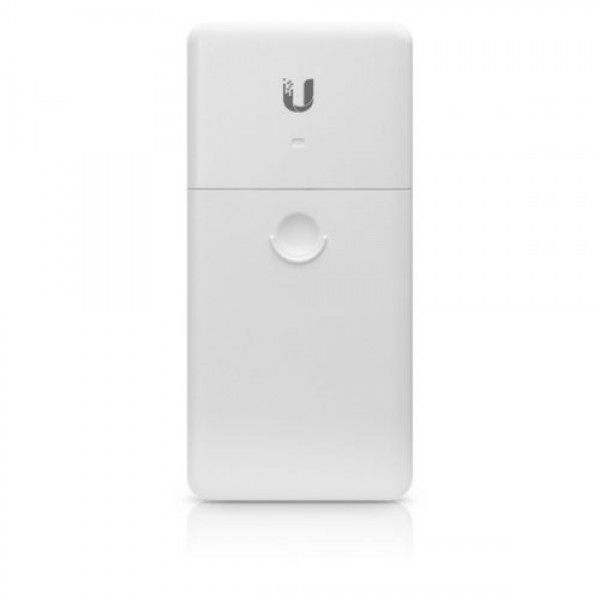

Ubiquiti N-SW NanoSwitch

Product Code: N-SW

Barcode: 817882021708

63.25 incl. GST 63.25 AUD 63.25

57.57


    This combination does not exist.

    Add to Cart Buy Now


    Share this product:

    Ubiquiti N-SW NanoSwitch


    Ubiquiti Nanoswitch N-SW Outdoor 4-Port PoE Passthrough Switch

    Ubiquiti Model: N-SW

    • (1) Gigabit 24V Passive PoE In Port
    • (3) Gigabit 24V Passive PoE Out Ports
    • Outdoor, Weather-Resistant Enclosure


    Overview

    Introducing the Ubiquiti Networks® NanoSwitch™, an unmanaged switch with four Gigabit Ethernet ports. For its total non‑blocking line rate, the NanoSwitch supports up to 4 Gbps.

    N-SW Hardware Features Power over Ethernet Featuring a durable, weatherproof form factor, the NanoSwitch is ideal for outdoor deployment. For quick installation, the compact NanoSwitch can be easily mounted on a pole or wall.

    • Dimensions 196.4 x 93.5 x 32.4 mm
    • Weight 271 g
    • Enclosure Characteristics White Polycarbonate
    • Total Non-Blocking Line Rate 4 Gbps
    • Typical Power Consumption 1.5W
    • Passive PoE Max. Wattage per Port 24V, 2-Pair, 1A per Port (24W)
    • Total Passive PoE Max. Wattage 24V, 2-Pair, 1A for 3 Ports (24W)
    • Power Method Passive 24V, 2-Pair PoE In
    • Power Supply POE-24-24W PoE Adapter (Not Included)
    • Passive PoE Voltage Range 21.6 - 26.4V
    • LEDs Speed/Link/Activity (All Ports)
    • Networking Interfaces (4) 10/100/1000 Mbps RJ45 Ports
    • PoE Interfaces Passive 24V, 2-Pair PoE In
    • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    • Operating Temperature -30 to 70° C
    • Operating Humidity 5 to 95% Non Condensing
