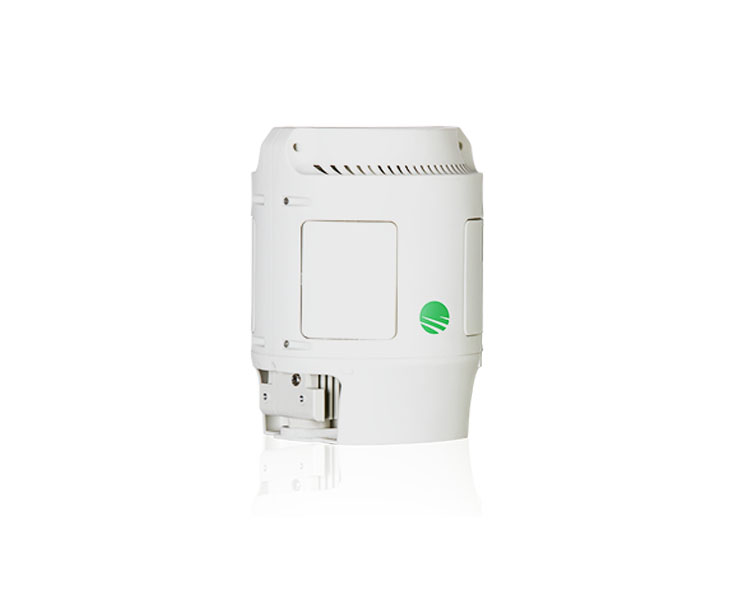

Siklu MH-N366-CCP-PoE-MWB MultiHaul™ TG Node, 360°, 3800Mbps, 1 RJ-45 10GE & 1 RJ-45 1GE & 1 SFP+ 10GE, Mounting Kit included, IP-67, White

https://citytechnology.com.au/web/image/product.template/5452/image_1920?unique=120578a

Product Code: MH-N366-CCP-PoE-MWB

2,886.40 incl. GST 2886.4 AUD 2,886.40

2,499.00


    This combination does not exist.

    Add to Cart Buy Now

    Share this product:

    Siklu MH-B100-CCS-PoE-MWB MultiHaul™ BU, 90°, 500Mbps upgradable to 1800Mbps

    MultiHaul™ BU, 90°, 500Mbps upgradable to 1800Mbps, 2 RJ-45 & 1 SFP (1 port PSE enabled), MK & PoE injector included, IP-65, White. 60GHz Point-to-Multipoint radio

    •  Ultra-high multi-gigabit throughput
    •  Plug & play with automatic alignment
    •  Perfect for 5G fixed wireless and security networks

    Millimetre waves + PtMP, a winning combo

    The MultiHaul™ brings the advantages of millimetre waves – multi-gigabit throughput and high reliability – to a cost effective point-to-multipoint form factor. Seamlessly and quickly extend your fiber network and start delivering 5G-ready fixed-wireless today.


    Product Features:

    • Security / Safe City Networks

    • Gigabit to the Home

    • Smart City

    • Business Services

    • Wi-Fi Backhaul

    Product Specifications:

    • Topologies: Point to Multi-Point / Point to Point

    • Built-In Antenna: Horizontal Scanning: 90° / Vertical Beam-width: 20°

    • Frequency and Duplexing: 57-64GHz

    • Channels and Width: 2 non-overlapping channels, 2160MHz wide

    • Modulation and Coding: 9 levels of adaptive coding and modulation

    • Line Rate (PHY) Line rate up to 2300Mbps

    • Aggregate Throughput: Max capacity 1800Mbps, license dependant

    • System Gain (Link Budget): 125dB (including antenna gain)

    • Typical Reach: 800 - 1000ft (250 - 300m)

    • Interfaces: 2 x RJ45 100/1000Base-T + 1 x SFP (supports 1GbE & 2.5GbE)

    • Terminal Units (TU): Up to 8 Terminal Units

    • Ethernet Features:

        IEEE 802.1d transparent bridging

        VLAN & VLAN stacking

        Jumbo frames

    • Security: AES 128-bits

    • Management and Provisioning:

        Zero-touch turn up; In-band, out-of-band management

        Web GUI: (one-click configuration of local and remote units) and embedded CLI

        SNMPv2/3, TACACS+, RADIUS

    • Conformance:

        Radio: FCC Part 15.255

        EMC: FCC 47CFR.part 15

        Safety: UL 60950

    • Power Supply: PoE, 10W (IEEE 802.3af) without PoE-out, 50W with PoE-Out (IEEE 802.3at+)

    • PoE Out:

        ETH2: 26W, 802.3af

        ETH3: 13W, 802.3af

    • Environmental:

        Operating Temperature: -22 to 131°F (-30 to 56°C)

        Optional: -49 to 131°F (-45 to 56°C)

        Ingress Protection Rating: IP65 (optional IP67)

    • Dimensions: 7.5 x 5.2 x 3.5" (190.5 x 132.08 x 88.9mm)

    • Weight: 3lbs (including mounting kit)


                                                                                                                                                           Please click here to download data sheet
