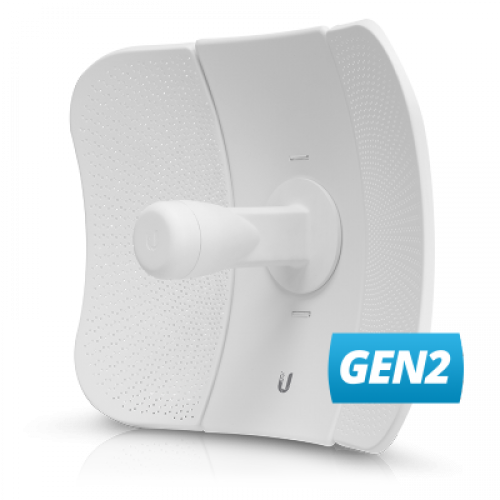

Ubiquiti LBE-5AC-LR 5GHz LiteBeam AC Gen2 Long Range
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti LBE-5AC-LR 5GHz LiteBeam AC Gen2 Long Range
Ubiquiti LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance applications. The LBE-5AC-LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole).
Features:
Improved Radio Design
Improved Mounting
Improved Surge Protection
Management WiFi Radio/UISP mobile app
AirOS 8
Mechanical:
Dimensions: 512 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
Weight Without Mount: 1.360 kg (2.998 lb)
With Mount: 1.735 kg (3.825 lb)
Enclosure Materials: Aluminum, Plastic
Mounting: Pole-Mounting Kit (Included)
Wind Loading: 550 N at 200 km/h (123.6 lbf at 125 mph)
Wind Survivability: 200 km/h (125 mph)
Hardware:
Networking Interface: (1) 10/100/1000 Ethernet Port
Processor: MIPS 74Kc
Memory: 64 MB DDR2
Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption: 7W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 24V ± 10%
Gain: 26 dBi
LEDs: Power, Ethernet
Channel Sizes: PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
ESD/EMP Protection: ± 24 kV Contact / Air
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
