MikroTik LAMPGM&RG520F-EU LAMP 5G R16 IP67 Outdoor 5G Router
LAMP 5G R16 outdoor 5G RouterOS device with omnidirectional antennas, built-in eSIM, microSIM support, RG520F-EU 5G modem, Gigabit Ethernet with PoE-in, GNSS positioning, IP67 enclosure, and EN 60945 maritime certification.
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:

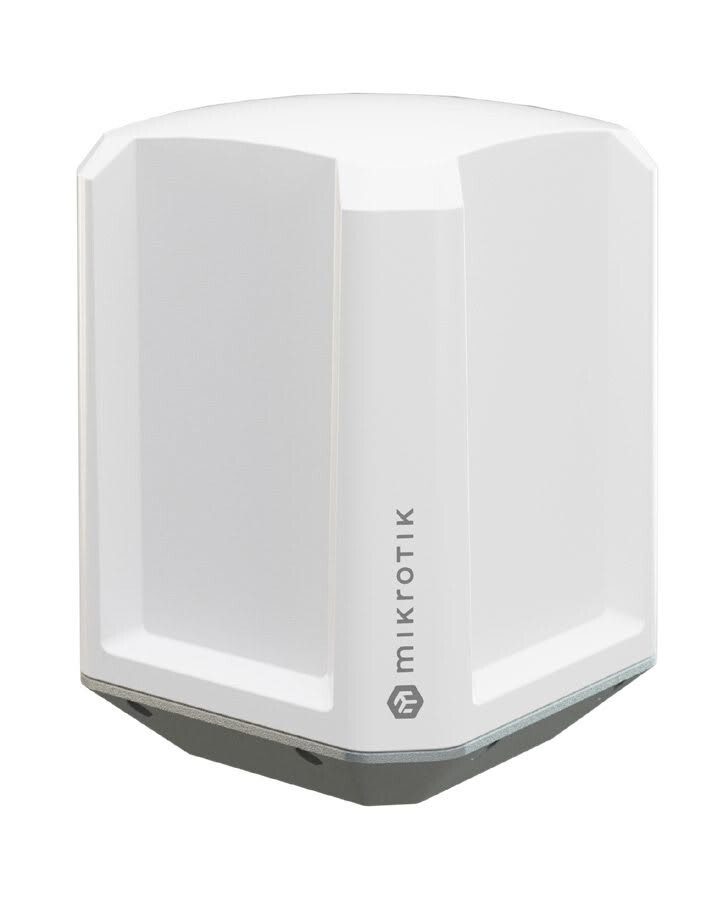

MikroTik LAMP 5G R16 IP67 Outdoor 5G Router
LAMPGM&RG520F-EU is an outdoor 5G RouterOS device designed for locations where there is not one perfect tower to aim at. Its omnidirectional antenna system, built-in eSIM, microSIM support and RG520F-EU modem help keep deployments connected to the best available mobile network.
Designed for urban deployments, backup connectivity, ports, industrial sites and demanding outdoor or marine environments, LAMP 5G R16 combines Gigabit Ethernet with PoE-in, GNSS positioning and an IP67 enclosure with EN 60945 maritime certification.
Key Features
- Outdoor 5G RouterOS device with omnidirectional antennas.
- Built-in eSIM with MikroTik Connectivity support, plus one microSIM slot.
- Quectel RG520F-EU modem with 5G SA/NSA, LTE Cat 20 and 3G support.
- 4x4 MIMO downlink and 2x2 MIMO uplink for 5G/LTE operation.

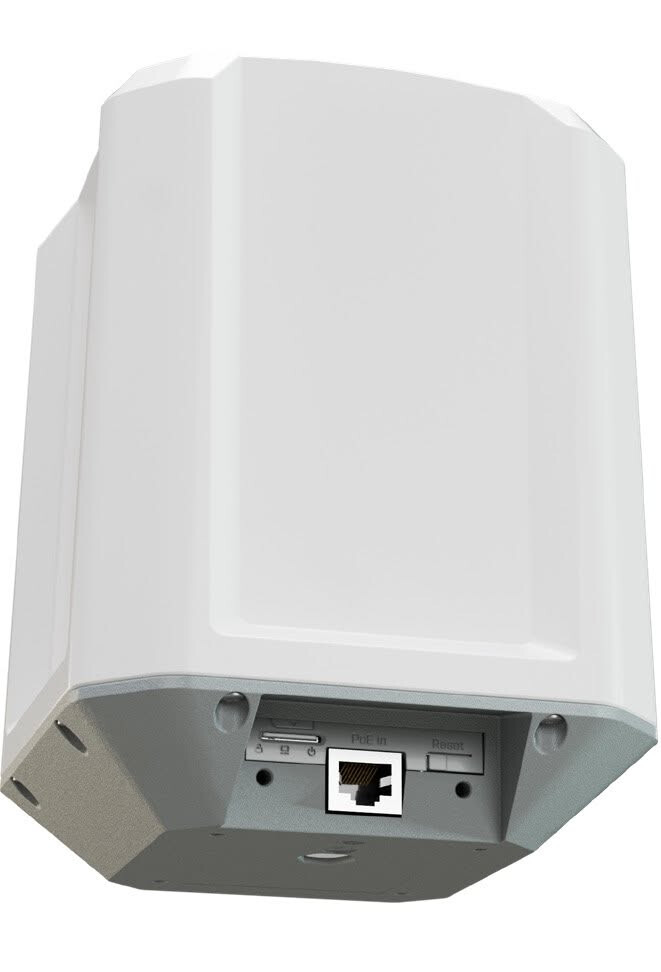

- Gigabit Ethernet with 802.3af/at PoE-in.
- GNSS support for GPS, GLONASS, Galileo, BeiDou and QZSS.
- IP67-rated enclosure and EN 60945 maritime certification.
- Stainless-steel mount, Gigabit PoE injector and 24 V 0.5 A power adapter included.
Technical Specifications
| Product code | LAMPGM&RG520F-EU |
| CPU | Dual-core 88F3720 800 MHz |
| CPU architecture | ARM 64-bit |
| RAM / storage | 512 MB DDR3L / 32 MB Flash |
| Ethernet | 1 x 1G Ethernet port |
| SIM support | 1 x microSIM, eSIM |
| Modem | R11mL-RG520F-EU / RG520F-EU |
| 5G SA performance | DL 4.2 Gbps; UL 900 Mbps |
| 5G NSA performance | DL 5.0 Gbps; UL 650 Mbps |
| LTE category | Cat 20, 2.0 Gbps downlink / 200 Mbps uplink |
| MIMO | 4x4 DL, 2x2 UL |
| Dimensions with mount | 276 x 267 x 133 mm |
| Weather rating | IP67 |
| Operating system | RouterOS v7, License level 3 |
| Operating temperature | -40°C to +70°C |
| Power input | 12-56 V PoE-in, 802.3af/at |
| Max power consumption | 10 W |
| Shipping weight | 3 kg |
