Mimosa Networks J-Mount Advanced J-Mount with extra twist

Product Code: J-Mount

39.05 incl. GST 39.050000000000004 AUD 39.05

35.52


    This combination does not exist.

    Add to Cart Buy Now


    Share this product:

    Mimosa Networks  J-Mount Advanced J-Mount with extra twist

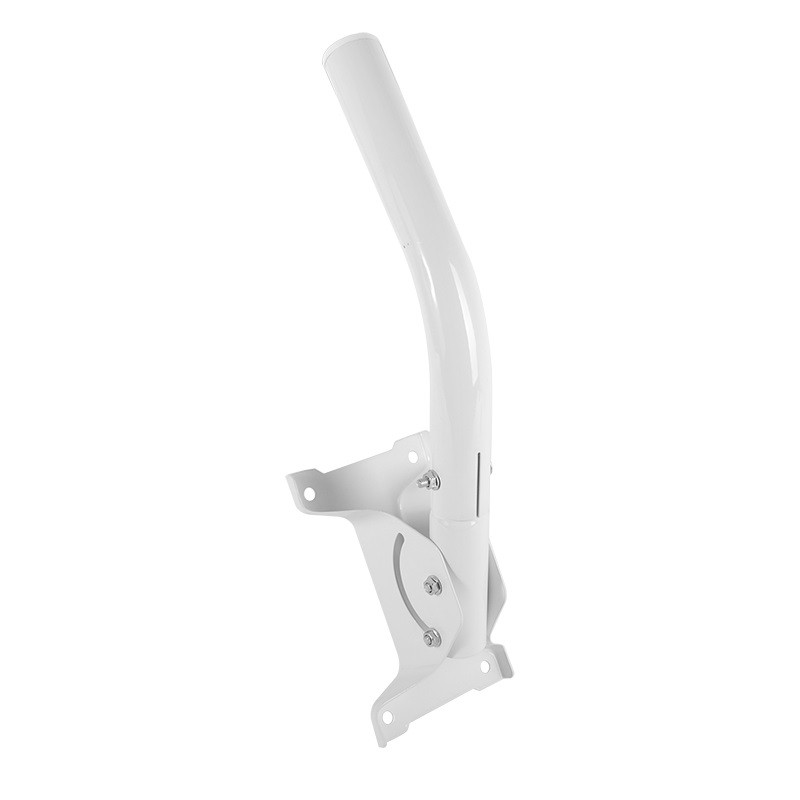

    The Mimosa Advanced J-Mount accessory accommodates most under roof eave mounting applications. With an extra axis of rotation to align the C5 and keep it level to the horizon, the J-Mount provides three degrees of rotation for elevation, azimuth and pole twist adjustment for precise aiming.


    Description:


    • Weight 0.96 kg
    • Mounting Base 191 mm  x 120 mm
    • Pole Length 355 mm
    • Pole Outside Diameter 38 mm
    • Mounting Options Surface mount with four screw hole points
    • Assembly Pre-assembled with a white powder coated finish. Includes four (4) 6.35 mm (0.25”) lag bolts. Pipe/hose clamps not included
