ICT Power ICT1000-48PM Power Module - 48VDC / 1000W
ICT Power
ICT Power are DC Power Leader for Remote Monitoring and Control at Wireless Communication Sites. Stay connected, informed and in control of DC power and connected devices at your sites from anywhere.
Share this product:

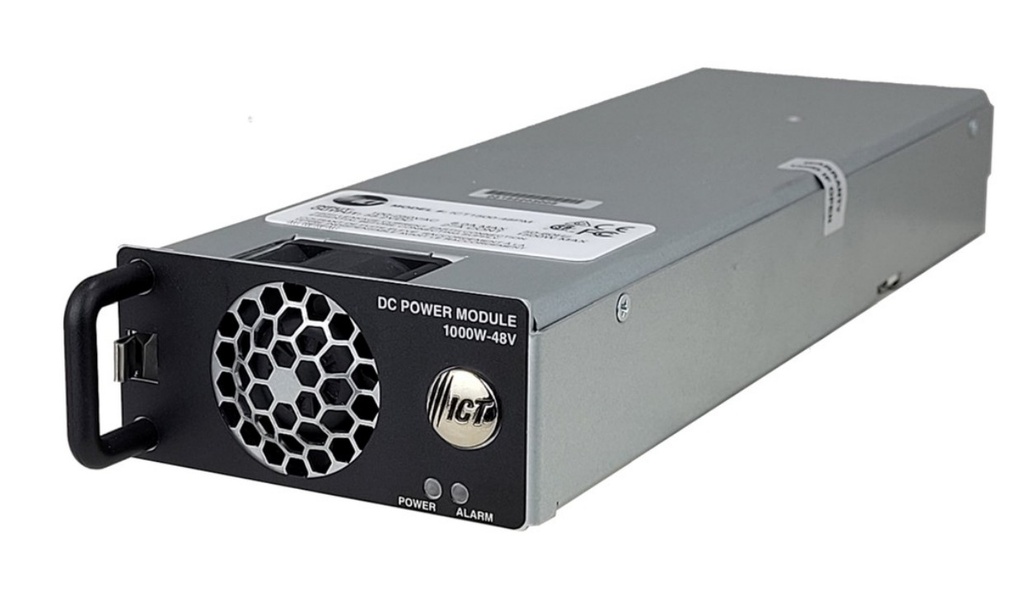

ICT Power ICT1000-48PM Power Module - 48VDC / 1000W
ICT Power 1000-Watt DC Power Module
ICT 1000-watt hot-swappable DC power module is designed to provide high performance, reliability, and redundancy for ICT 48-volt DC power systems. The high efficiency module is compatible with the ICT Modular Power Series, MPS Ultra, Hybrid Power Series and Hybrid Ultra which offer remote Ethernet-based communications for monitoring and control; enhanced security and reliability features including SNMPv1/v2c/v3 and TLS 1.3; fan fail detect alarms; and advanced battery management features for sealed lead acid and lithium-ion batteries.
AC InputAC Input Voltage (Nominal) 120/240 VAC Input Voltage Range 100-300 VAC (no derating) AC Input Current (per Module) at 110VAC nom. 11A max. Power Factor (typical) 0.99 Frequency 50/60Hz
Power ModulesICT1000-48PM Output Voltage +/- 55.2 VDC Output Voltage Range (adjustable) 46.0 – 60.0 VDC Power output per Module 1000W Maximum Output Current 18A Efficiency (peak) 91% Output ripple (rms) < 60mV Line regulation +/- 0.1% Load regulation 1.20% max
| AC Input Voltage (Nominal) | 120/240 VAC |
| Input Voltage Range | 100-300 VAC (no derating) |
| AC Input Current (per Module) at 110VAC nom. | 11A max. |
| Power Factor (typical) | 0.99 |
| Frequency | 50/60Hz |
| ICT1000-48PM | |
| Output Voltage | +/- 55.2 VDC |
| Output Voltage Range (adjustable) | 46.0 – 60.0 VDC |
| Power output per Module | 1000W |
| Maximum Output Current | 18A |
| Efficiency (peak) | 91% |
| Output ripple (rms) | < 60mV |
| Line regulation | +/- 0.1% |
| Load regulation | 1.20% max |
