Hana Wireless HW-OD24-9-NM 2.4GHz 9dBi Omni Antenna N Male
Hana Wireless
Hana Wireless provides quality components for both the indoor and outdoor wired and wireless broadband solutions. Product categories include: antennas, enclosures, unique custom kits, mounts, adapters, power supplies and pre-made jumper cables. Hana Wireless is dedicated to having the right choice of parts that can make a real difference in the outcome of your wireless broadband communications project. Products are designed to meet the standards comparable to those of other major manufactures and used across the globe at a more down-to-earth price point.
Share this product:

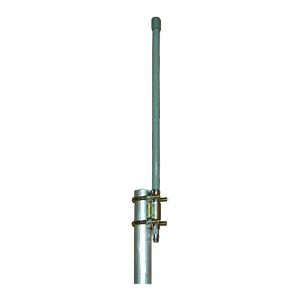

Hana Wireless HW-OD24-9-NM 2.4GHz 9dBi Omni Antenna N Male
Product Code: HW-OD24-9-NM
Applications:
2.4 GHz WLAN System
2.4 GHz ISM Band
Support IEEE 802.11b/g
Wi-Fi System
Multipoint Coverage
Features:
High Gain, Low VSWR
Lightweight Fiberglass Radome
Supplied with Mast Mounting Kit
Specifications:
Frequency: 2400-2483 MHz
Bandwidth: 83 MHz
Gain: 9 dBi
Horizontal Beam: 360°
Vertical Beam: 13°
VSWR: ≤1.5
Impedance-Ω:: 50
Polarization: Vertical
Max Power: 100 W
Connector: N Female
Dimension: Φ.8’x31.5’ inches
Weight: 1.88 lbs.
Mounting Mast Diameter: Φ1.5’x1.9’ inches
