RF Elements HG3-CC-S90 5GHz Symmetrical Horn Carrier Class 90°
RF Elements
RF Elements solve the issue of interference in wireless networks by our proprietary technology based on noise rejecting antennas, virtually lossless connector and systems scalability. We deliver technology for fast, sustainable wireless.
Share this product:

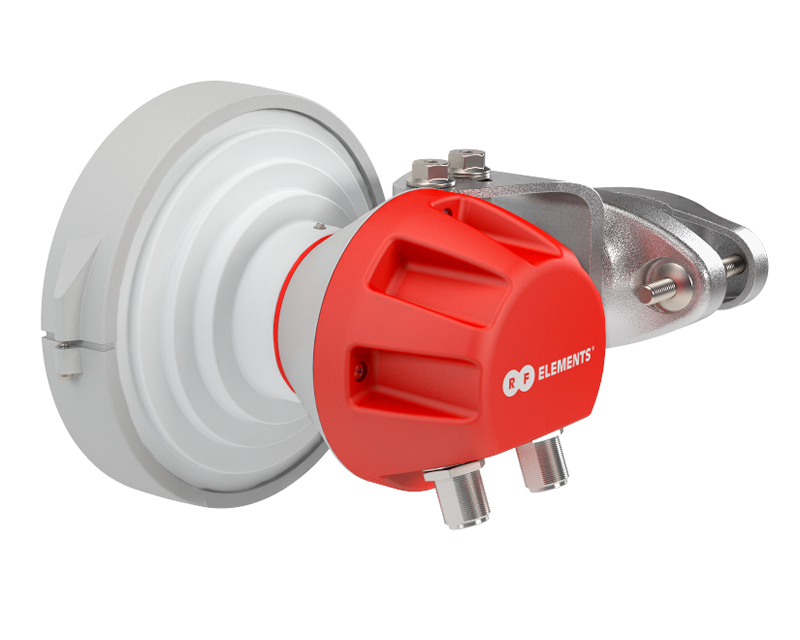

RF Elements SH-CC-5-90 Symmetrical Horn Carrier Class 90°
The RF Elements SH-CC Series offer unique RF performance in a very compact package.
Scalar horn antennas have symmetrical beams with identical patterns in the Vertical
and Horizontal plain. Extremely small side lobes secure greatly decreased interference.
RF Elements SH-CC Antennas are ideal for covering areas with close in clients where null zone
issues occur. High density AP clusters and radio co-location is now practical due
to very unique RF radiation patterns and compact size.
SH-CC-5-90 Technical Data
- Radio Connection 2x N Female Bulkhead Connector
- Antenna Type Scalar Horn
- Environmental IP55
- Temperature -30°C to +55°C (-22°F to +131°F)
- Wind Survival 160 km/h
- Frequency Range 5180 - 6100 MHz
- Product ID SH-CC 5-90
- Gain 10 dBi
