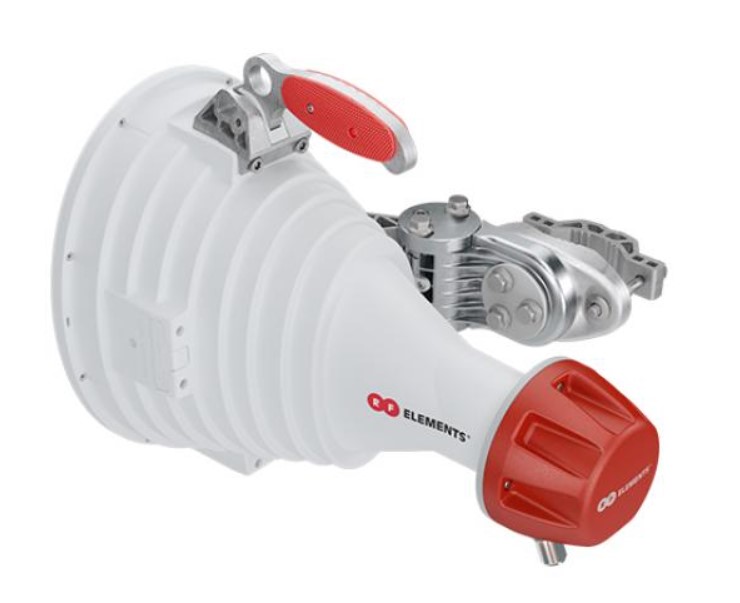

RF Elements HG3-TP-S30 5GHz Asymmetrical Horn TwistPort 30°
30° Asymmetrical Horn CC has radiation pattern narrow in the azimuth and
wide in the elevation plane, greatly improving the coverage planning options.
Increased gain and zero side lobes are suitable for rural deployments.
30° Asymmetrical Horn CC Antenna exceeds the traditional patch array sector
antenna thanks to high stability of gain and radiation pattern in the whole
bandwidth of operation. Outstanding noise rejection and precision of radiation
pattern favor 30° Asymmetrical Horn CC antenna for high-density AP clusters
and dense co-location sites. 30° Asymmetrical Horn CC Antenna features two
N-female connectors
TECHNICAL DATA
Radio Connection 2x N Female Bulkhead Connector
Antenna Type Horn
Materials UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel
Enviromental IP55
Pole Mounting Diameter 36-80 mm (recommend as close to 80mm as possible)
Temperature -35°C to +55°C (-31°F to +131°F)
Wind Survival 160 km/hour Wind Loading 67 N at 160 km/hour
Mechanical Adjustment ± 25° Elevation, ± 20° Azimuth
Weight 4.5 kg / 10.0 lbs – single unit* 6.6 kg / 14.6 lbs – single unit incl. package*
Single Unit Retail Box: 435 × 360 × 250 mm / 17.1 × 14.2 × 9.8 inch*
