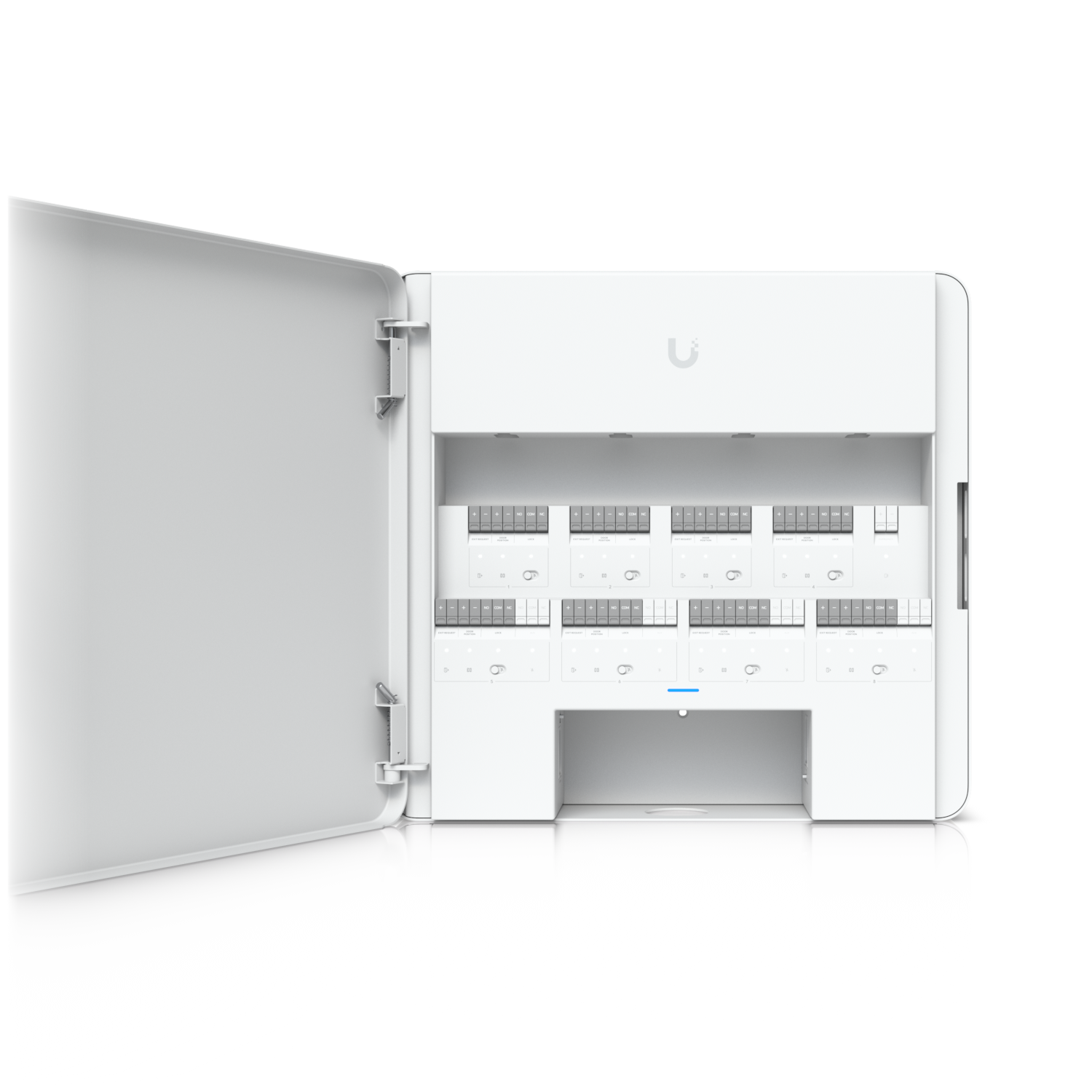

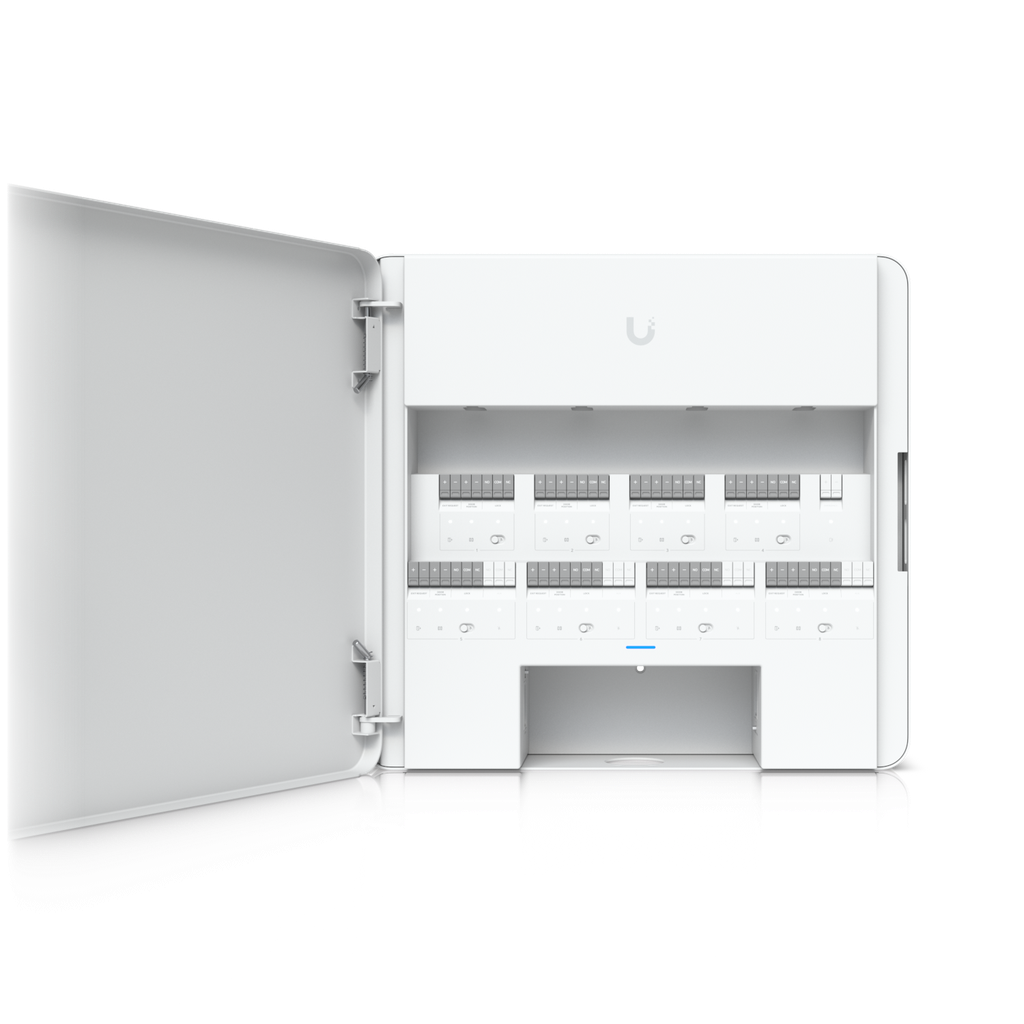

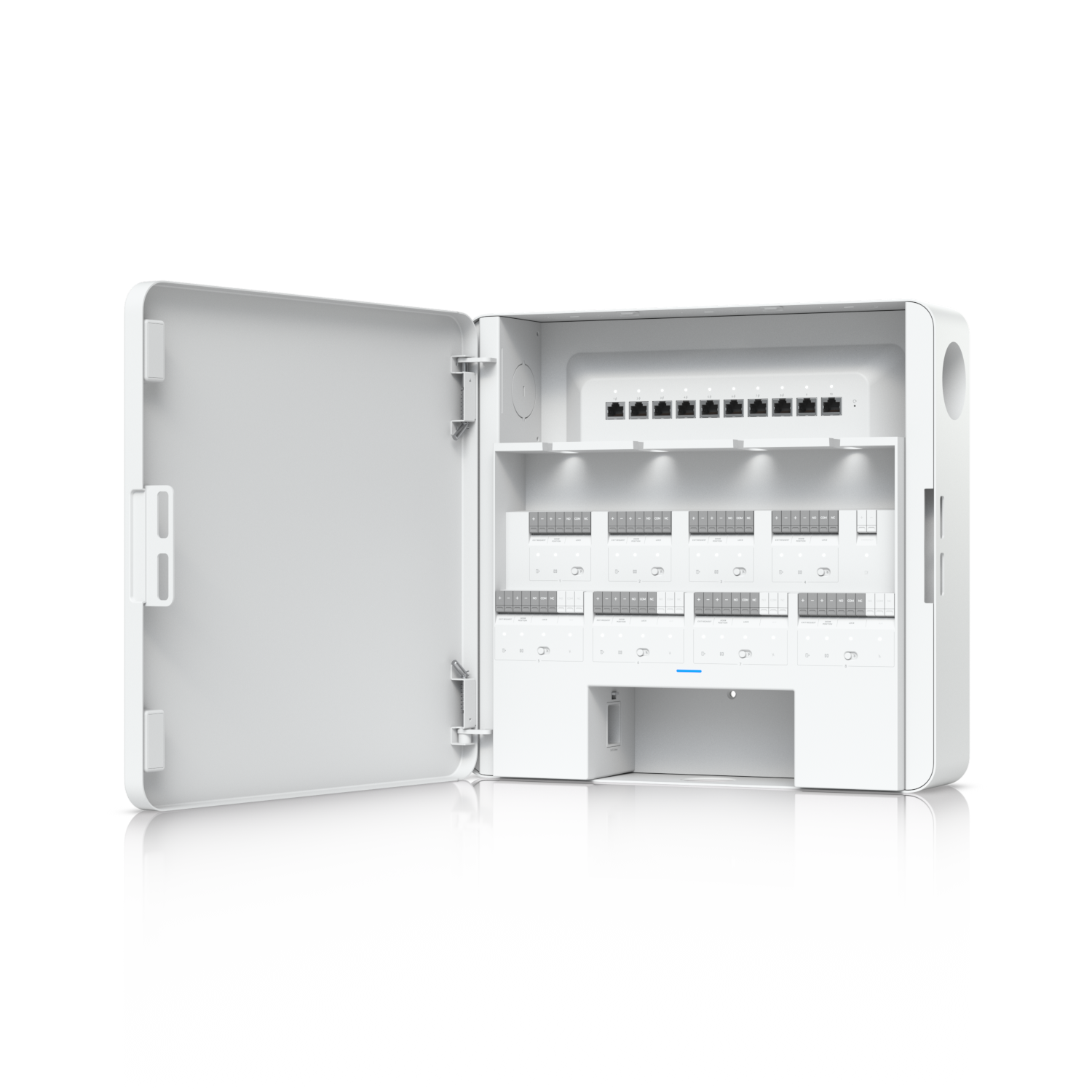

Ubiquiti EAH-8 UniFi Enterprise Access Hub, Entry/Exit Control to 8 Doors, Battery Backup Support, Lock terminals
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti EAH-8 UniFi Enterprise Access Hub, Entry/Exit Control to 8 Doors, Battery Backup Support, Lock terminals
Ubiquiti Enterprise Access Hub
Ubiquiti Enterprise-grade access hub with entry and exit control to eight doors and battery backup support.
(8) Lock terminals (12V or Dry)
(8+8) Inputs for request-to-exit devices and door position sensors
(8) PoE ports for Access Readers
(4) AUX terminals for chimes, sirens, or door openers
(1) Battery backup input (32–48V)
Technical Specifications
Mechanical
Dimensions 379 x 355 x 105 mm (15 x 14 x 4.1")
Weight Device: 9.1 kg (20 lb)
Mount: 624 g (1.4 lb)
Enclosure material SGCC housing with PC cover
Mounting material SGCC wall mount plate
Hardware
Networking interface (10) 10/100/1000 Base-T
Power method Universal input, 100-240V AC,~4.4A Max, 50/60Hz
32–48V DC Lead Acid Battery
Power supply AC/DC, internal
Max. power consumption 240W
PoE interface (8) PoE (Pins 1, 2+; 3, 6-)
Voltage range PoE mode 44–57V DC
Total available PoE 60W
Max. PoE wattage per port 15.4W
Button (1) Factory-reset
LEDs System: white/blue
Output relays: steady white
Ethernet: flashing white
Digital input (8) Inputs for request-to-exit devices
(8) Inputs for door position sensors
(1) Emergency
Dry output relay (8) Lock terminals (12V or Dry)
(4) AUX terminals for advanced setup (Chime/Siren/Door opener)
Powered output relay Lock: 12V DC, 1A/ Dry
Aux: Dry only
