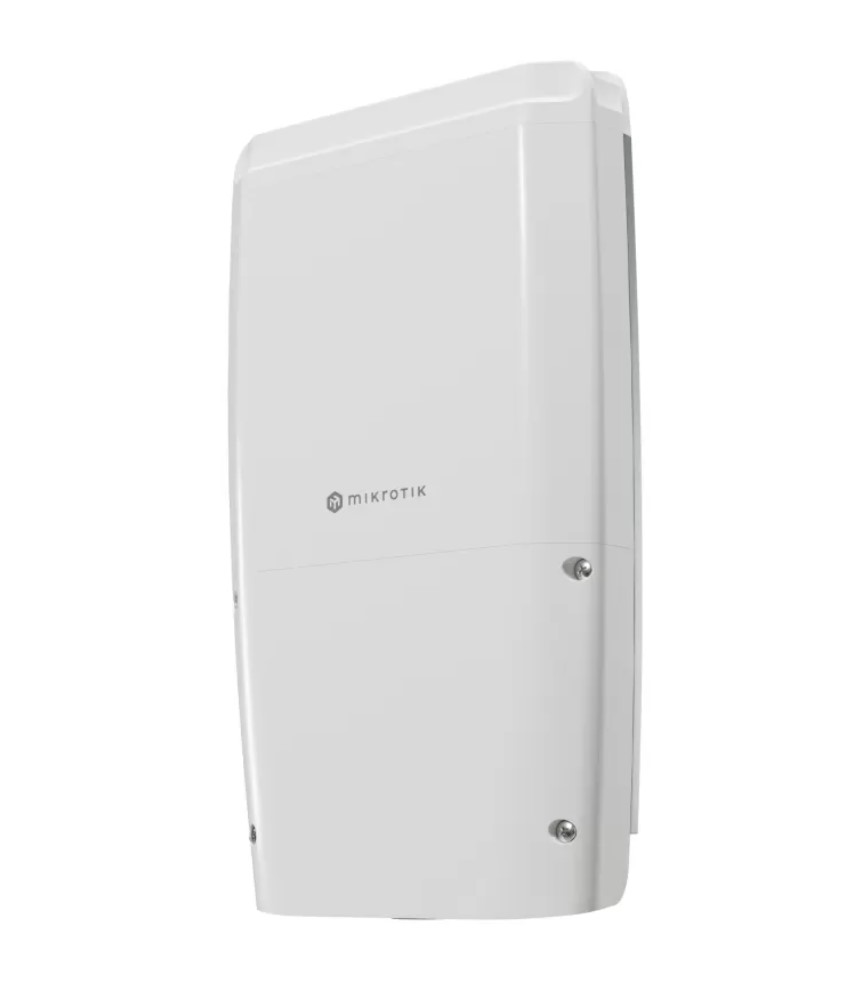

Mikrotik CRS504-4XQ-OUT 4 x 100 Gigabit QSFP28 Ports Outdoor

https://citytechnology.com.au/web/image/product.template/20460/image_1920?unique=0cddad2

Product Code: CRS504-4XQ-OUT

1,699.50 incl. GST 1699.5 AUD 1,699.50

1,471.27


    This combination does not exist.

    Add to Cart Buy Now

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    Share this product:

    Mikrotik CRS504-4XQ-OUT 4 x 100 Gigabit QSFP28 Ports IP66 Outdoor

    Mikrotiks affordable, compact, energy-efficient 100 Gbps networking anytime, ANYWHERE! IP66 weatherproof enclosure, 4x 100 Gigabit ports, multiple powering options.

    Should high-quality 100 Gigabit connectivity be limited to indoors only? Definitely not! That’s why we created the Mikrotik CRS504-4XQ-OUT: a versatile, cost-effective, ultra-fast weatherproof switch for all your outdoor needs.

    At the core of this Mikrotik CRS504-4XQ-OUT masterpiece, we have an incredible Marvell Prestera switch chip. And there are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices. Here’s where the speedy switch chip really shines: each port is connected to four 25 Gigabit lines. That means you’re getting up to 16 high-speed fiber interfaces from a single outdoor switch! You can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. And all this versatility comes in a sturdy, weatherproof IP66-rated enclosure. This rating proves it’s strong enough to handle powerful water jets from any direction!

    When it comes to outdoor event planning, you can never be too prepared. So having multiple powering options is a must! And Mikrotik CRS504-4XQ-OUT has got you covered: there’s a standard DC jack, a 2-pin terminal, and 802.3bt PoE-in. We’ve also kept the good old management and console ports – to help you deal with any unexpected situations.

    Performance-wise, Mikrotik CRS504-4XQ-OUT is a real workhorse that can handle VLANs, ACL, MLAG, Jumbo frames, and so much more – even some L3 hardware offloading! The mighty Marvell Prestera switch chip dominates most tasks without blowing the power consumption up – only up to 25W (without attachments).

    Stop waiting for the perfect weather – invest in the perfect tools!

    CRS504-4XQ-OUT Specifications

    • Product code CRS504-4XQ-OUT

    • Architecture MIPSBE

    • CPU QCA9531

    • CPU core count 1

    • CPU nominal frequency 650 MHz

    • Switch chip model 98DX4310

    • RouterOS license 5

    • Operating System RouterOS v7

    • Size of RAM 128 MB

    • Storage size 32 MB

    • Storage type FLASH

    • MTBF Approximately 200'000 hours at 25C

    • Tested ambient temperature -40°C to 70°C

    Powering

    • Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal)

    • DC jack input Voltage 36-57 V

    • 2-pin terminal input Voltage 36-57 V

    • Max power consumption 38 W

    • Max power consumption without attachments 25 W

    • Cooling type Passive

    • PoE in 802.3 bt

    • PoE in input Voltage 43-57 V

    Ethernet

    • 10/100 Ethernet ports 1

    Fiber

    • Number of 100G QSFP28 ports 4

    Peripherals

    • Serial console port RJ45

    Other

    • CPU temperature monitor Yes

    • PCB temperature monitor Yes

    • Voltage Monitor Yes

    Certification & Approvals

    • IP 66
