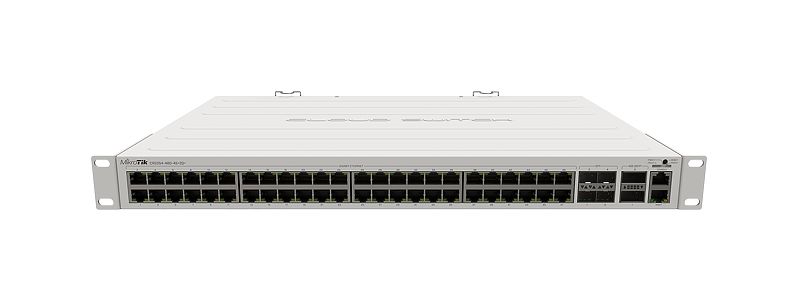

MikroTik CRS354-48P-4S+2Q+RM 750W 48 Port Gigabit switch 4 x SFP+ cages 2 x 40G QSFP+ 1U rackmount Dual boot
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:
MikroTik CRS354-48P-4S+2Q+RM 750W 48 Port Gigabit switch 4 x SFP+ cages 2 x 40G QSFP+ 1U rackmount Dual boot
If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.
The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Specifications:
Product code: CRS354-48P-4S+2Q+RM
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 443 x 382 x 44 mm
RouterOS license: 5
Operating System: SwOS / RouterOS (Dual boot)
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -20°C to 60°C
Powering:
Number of AC inputs: 1
AC input range: 100-240
Max power consumption: 800 W
Max power consumption without attachments: 85 W
Cooling type: 4 fans
PoE-out:
PoE-out ports: Ether1-Ether48
PoE out: 802.3af/at
Max out per port output (input 18-30 V): 1000 mA
Max out per port output (input 30-57 V): 570 mA
Total output current: 27A at 26V OR 13.2A at 53V
Total output power: 700W
Ethernet:
10/100 Ethernet ports: 1
10/100/1000 Ethernet ports: 48
Fibre:
SFP+ ports: 4
Number of 40G QSFP+ ports: 2
Peripherals:
Serial console port: RJ45
Other:
CPU temperature monitor: Yes
Current Monitor: Yes
PCB temperature monitor: Yes
Voltage Monitor: Yes
Certification & Approvals:
Certification: CE, EAC, ROHS
IP: IP20
