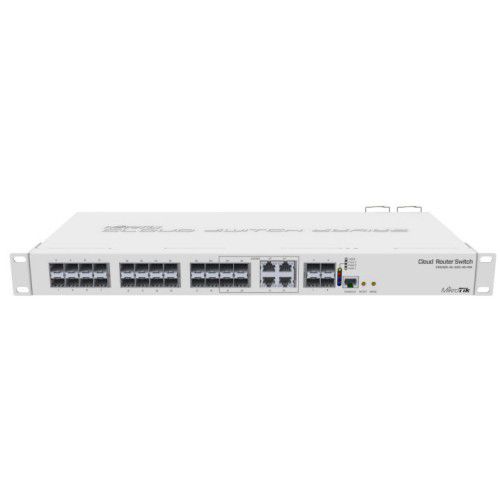

MikroTik CRS328-4C-20S-4S+RM Cloud Router Switch 800MHz 20xSFP 4xSFP+ Rack Mount
The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.
The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.
Specifications:
Product code: CRS328-4C-20S-4S+RM
Architecture: ARM 32bit
CPU: 98DX3236
CPU core count: 1
CPU nominal frequency: 800 MHz
Dimensions: 443 x 194 x 44 mm
RouterOS licence: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 512 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -20°C to 60°C
Powering:
Number of AC inputs: 2
AC input range: 100-240
Max power consumption: 43 W
Cooling type: 2 fans
Ethernet:
Ethernet Combo ports: 4
Fibre:
SFP ports: 20
SFP+ ports: 4
Peripherals:
Serial console port: RJ45
Other:
CPU temperature monitor: Yes
Voltage Monitor: Yes
Mode button: Yes
Certification & Approvals:
Certification: CE, EAC, ROHS
