MikroTik CRS328-24P-4S+RM 500W 24 PoE+ Gigabit Ethernet 4 SFP+ ports Rack Mount

https://streakwave.com.au/web/image/product.template/1808/image_1920?unique=5fc7613

Product Code: CRS328-24P-4S+RM

Barcode: 4752224002228

1,124.20 incl. GST 1124.2 AUD 1,124.20

973.30


    This combination does not exist.

    Add to Cart Buy Now

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    Share this product:

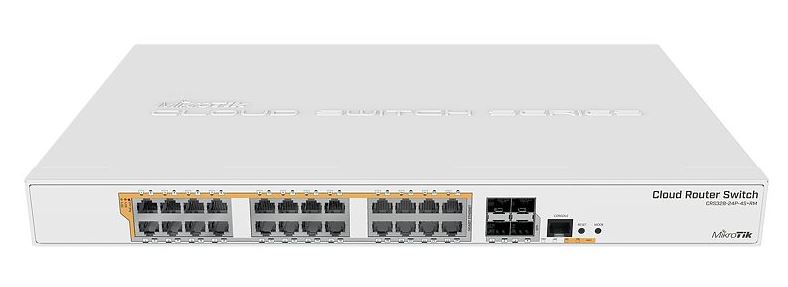

    MikroTik CRS328-24P-4S+RM 500W 24 PoE+ Gigabit Ethernet 4 SFP+ ports Rack Mount


    CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).

    CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.

    The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.

    Specifications:
    Product code: CRS328-24P-4S+RM
    Architecture: ARM 32bit
    CPU: 98DX3236
    CPU core count: 1
    CPU nominal frequency: 800 MHz
    Dimensions: 443 x 300 x 44 mm
    RouterOS licence: 5
    Operating System: RouterOS / SwitchOS
    Size of RAM: 512 MB
    Storage size: 16 MB
    Storage type: FLASH
    MTBF: Approximately 200'000 hours at 25C
    Tested ambient temperature: -20°C to 60°C

    Powering:
    Number of AC inputs: 1
    AC input range: 100-240
    Max power consumption: 494 W
    Max power consumption without attachments: 44 W
    Cooling type: 2 fans

    PoE-out:
    PoE-out ports: Ether1-Ether24
    PoE out: 802.3af/at
    Max out per port output (input 18-30 V): 1000 mA
    Max out per port output (input 30-57 V): 450 mA
    Max total out (A): 20 A

    Ethernet:
    10/100/1000 Ethernet ports: 24

    Fibre:
    SFP+ ports:4

    Peripherals:
    Serial console port: RJ45

    Other:
    CPU temperature monitor: Yes
    Current Monitor: Yes
    PCB temperature monitor: Yes
    Voltage Monitor: Yes
    Mode button: Yes

    Certification & Approvals:
    Certification: CE, EAC, ROHS
    IP: IP00
