MikroTik CRS326-24G-2S+RM 24 Gigabit switch 2 x SFP+ cages 1U rackmount Dual boot
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:

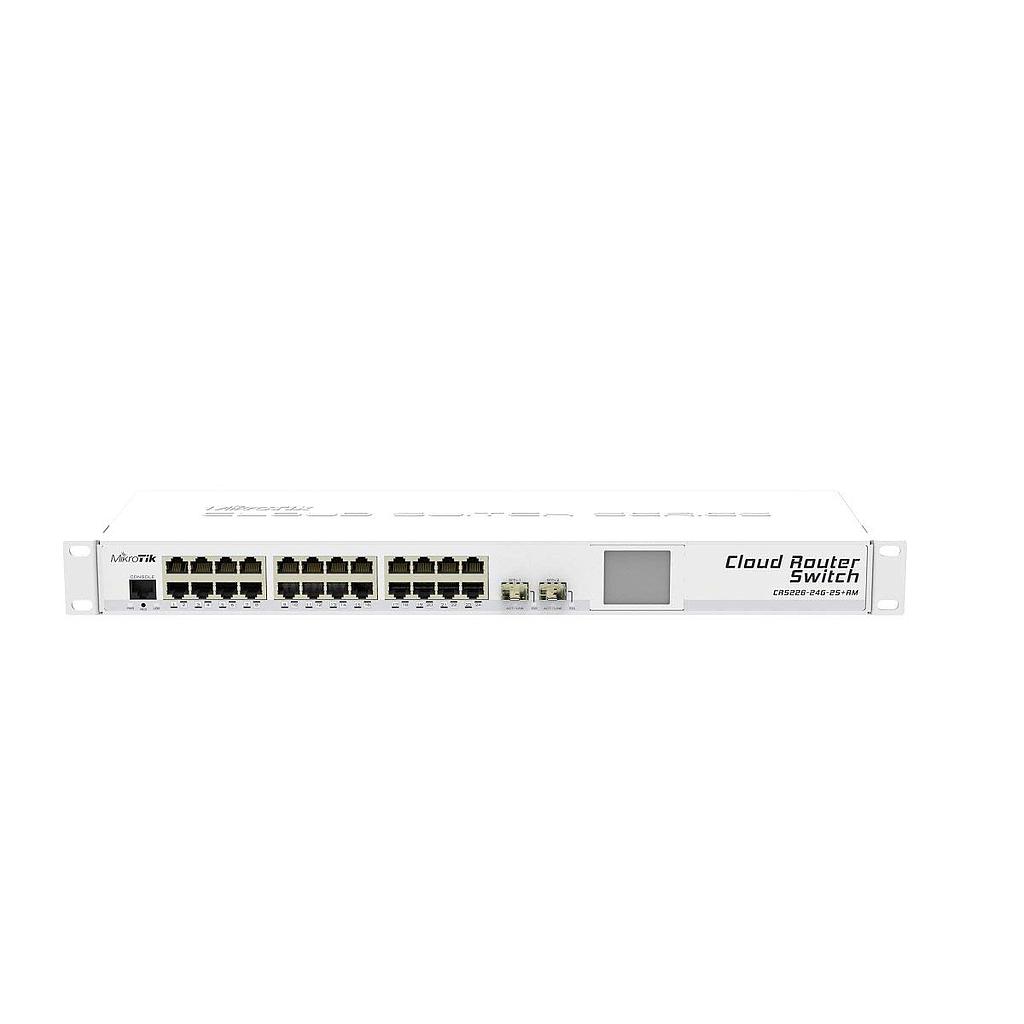

MikroTik CRS326-24G-2S+RM 24 Gigabit switch 2 x SFP+ cages 1U rackmount Dual boot
SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!
It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS.
If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Specifications:
Product code: CRS326-24G-2S+RM
Architecture: ARM 32bit
CPU: 98DX3236A1-BTD4C000
CPU core count: 1
CPU nominal frequency: 800 MHz
Dimensions: 440 x 144 x 44 mm
License level: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 512 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40°C .. +60°C
Powering:
Max Power consumption: 24W
PoE in: Passive PoE
PoE in input Voltage: 10-30 V
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 10-30 V
Ethernet:
10/100/1000 Ethernet ports: 24
Fibre:
SFP+ ports: 2
Peripherals:
Serial port: RJ45
