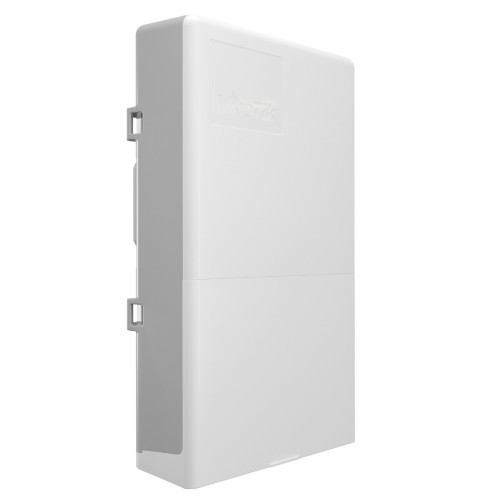

MikroTik CRS318-1Fi-15Fr-2S-OUT netPower 15FR Outdoor 800MHz 12x10Mbps
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:
MikroTik CRS318-1Fi-15Fr-2S-OUT netPower 15FR Outdoor 800MHz 12x10Mbps
With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage as applied to the unit.
There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!
netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.
The power supply is NOT included with the product- must be purchased separately.
Specifications:
Product code: CRS318-1Fi-15Fr-2S-OUT
Architecture: ARM 32bit
CPU: 98DX224S
CPU core count: 1
CPU nominal frequency: 800 MHz
Dimensions: 304 x 212 x 71 mm
RouterOS licence: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 256 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering:
Number of DC inputs: 16 (PoE-IN, DC jack)
DC jack input Voltage: 18-57 V
Max power consumption: 29 W
Max power consumption without attachments: 10 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-57 V (recommended 36-57V)
PoE-out:
PoE-out ports: Ether15
PoE out: Passive PoE
Max out per port output (input 18-30 V): 0.75 A
Max out per port output (input 30-57 V): 0.5 A
Max total out (A): 0.75 A
Ethernet:
10/100 Ethernet ports: 16
Fibre:
SFP ports: 2
Other:
CPU temperature monitor: Yes
Voltage Monitor: Yes
Certification & Approvals:
Certification: CE, EAC, ROHS
IP: IP54
