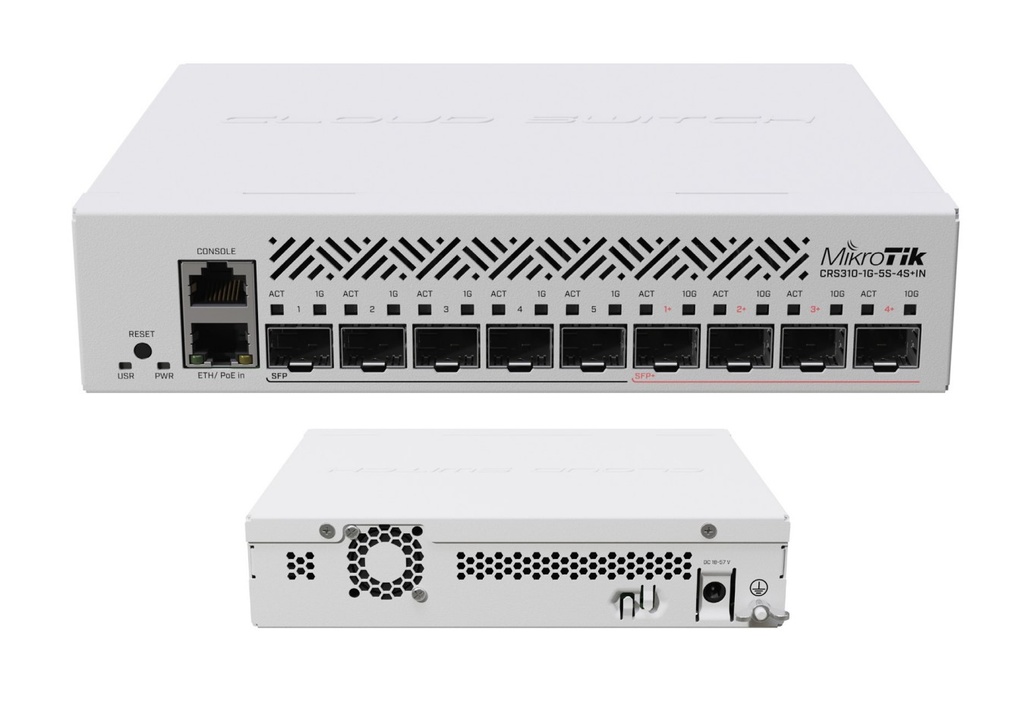

Mikrotik CRS310-1G-5S-4S+IN Cloud Router Switch with RouterOS L5 license
This switch is an indoor variation of the prominent netFiber 9 switch – used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You’re getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table.
Specifications
Details | |
---|---|
Product code | CRS310-1G-5S-4S+IN |
Architecture | ARM 32bit |
CPU | 98DX226S |
CPU core count | 1 |
CPU nominal frequency | 800 MHz |
Switch chip model | 98DX226S |
Dimensions | 200 x 166 x 44 mm |
RouterOS license | 5 |
Operating System | RouterOS v7 / SwitchOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Suggested price |
Powering
Details | |
---|---|
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 18-57 V |
Max power consumption | 20 W |
Max power consumption without attachments | 8 W |
Cooling type | 1 fan |
PoE in | 802.3af/at |
PoE in input Voltage | 18-57 V |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 1 |
Fiber
Details | |
---|---|
SFP ports | 5 |
SFP+ ports | 4 |
Peripherals
Details | |
---|---|
Serial console port | RJ45 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | 20 |
