MikroTik CCR1036-8G-2S+ Cloud Core Router 1036-8G-2S+ 4GB RAM

Product Code: CCR1036-8G-2S+

Barcode: 4752224002068

1,690.15 incl. GST 1690.15 AUD 1,690.15

1,536.46


    This combination does not exist.

    Add to Cart Buy Now


    Share this product:

    MikroTik CCR1036-8G-2S+ Cloud Core Router 1036-8G-2S+ 4GB RAM

    1U rackmount, 8x Gigabit Ethernet, 2xSFP+ cages, LCD, 36 cores x 1.2GHz CPU, 4GB RAM, 41.5mpps fastpath, Up to 28Gbit/s throughput, RouterOS L6, Dual PSU

    Our fastest router has now become even better - the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance.

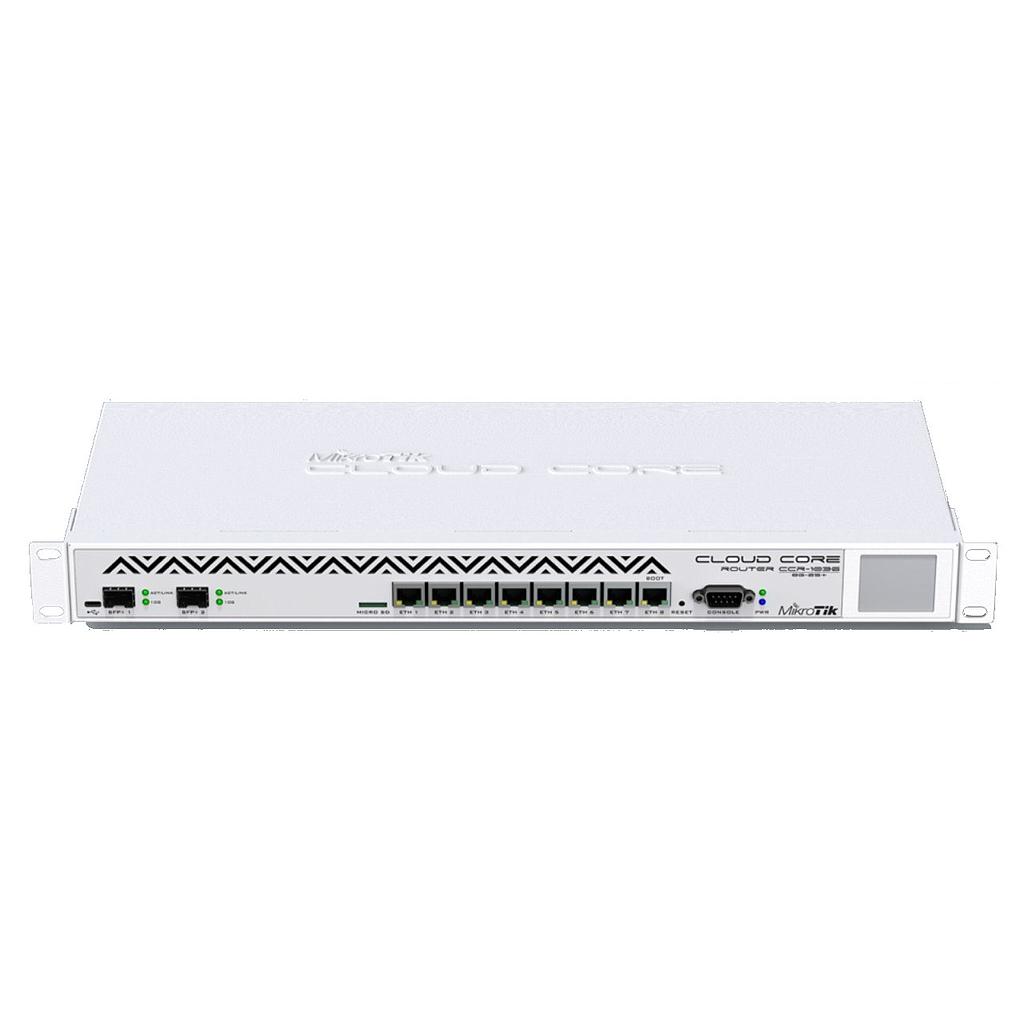

    The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports and serial console port.

    The new version of CCR1036-8G-2S+ has onboard 4GB of RAM, onboard M.2 PCIe 4x slot, full size USB slot and dual PSU for redundancy!

    Supports both SFP (1.25G) and SFP+ (10G) modules

    Specifications

    Details
    Product codeCCR1036-8G-2S+
    ArchitectureTILE
    CPUTLR4-03680
    CPU core count36
    CPU nominal frequency1.2 GHz
    Dimensions443 x 193 x 44 mm
    RouterOS license6
    Operating SystemRouterOS
    Size of RAM4 GB
    Storage size1 GB
    Storage typeNAND
    MTBFApproximately 200'000 hours at 25C
    Tested ambient temperature-20°C to 60°C
    IPsec hardware accelerationYes

    Powering

    Details
    Number of AC inputs2
    AC input range100-240
    Max power consumption73 W
    FAN count2

    Ethernet

    Details
    10/100/1000 Ethernet ports8

    Fiber

    Details
    SFP DDMIYes
    SFP+ ports2

    Peripherals

    Details
    Memory card typemicroSD
    Memory Cards1
    Serial console portRJ45
    Number of USB ports1
    USB Power ResetYes
    USB slot typeUSB type A
    Max USB current (A)1

    Other

    Details
    CPU temperature monitorYes
    PCB temperature monitorYes
    Voltage MonitorYes
    Mode buttonYes

    Certification & Approvals

    Details
    CertificationCE, EAC, ROHS
    IPIP20
