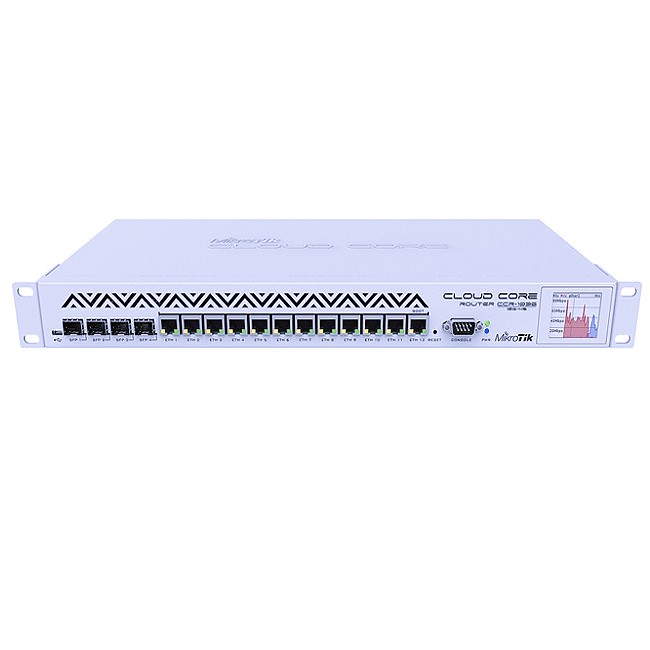

MikroTik CCR1036-12G-4S Gx36 CPU 4GB 4XSFP 12xGbit LAN case L6

Product Code: CCR1036-12G-4S

Barcode: 4752224002006

1,746.80 incl. GST 1746.8 AUD 1,746.80

1,587.82


    This combination does not exist.

    Add to Cart Buy Now

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    Share this product:

    MikroTik CCR1036-12G-4S Gx36 CPU 4GB 4XSFP 12xGbit LAN case L6



    1U rackmount, 12x Gigabit Ethernet, 4xSFP cages, LCD, 36 cores x 1.2GHz CPU, 4GB RAM, 24 mpps fastpath, Up to 16Gbit/s throughput, RouterOS L6, Dual PSU

    CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.

    The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.

    The new r2 version has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy.


    Specifications:
    Product code: CCR1036-12G-4S
    Architecture: TILE
    CPU: TLR4-03680
    CPU: core count 36
    CPU nominal frequency: 1.2 GHz
    Dimensions: 443 x 193 x 44 mm
    RouterOS licence: 6
    Operating System: RouterOS
    Size of RAM: 4 GB
    Storage size: 1 GB
    Storage type: NAND
    MTBF: Approximately 200'000 hours at 25C
    Tested ambient temperature: -20°C to 60°C
    IPsec hardware acceleration: Yes

    Powering:
    Number of AC inputs: 2
    AC input range: 100-240
    Max power consumption: 60 W
    FAN count: 2

    Ethernet:
    10/100/1000 Ethernet ports: 12

    Fibre:
    SFP DDMI: Yes
    SFP ports: 4

    Peripherals:
    Serial console port: RJ45
    Number of USB ports: 1
    USB Power Reset: Yes
    USB slot type: USB type A
    Max USB current (A): 1

    Other:
    CPU temperature monitor: Yes
    PCB temperature monitor: Yes
    Voltage Monitor: Yes
    Mode button: Yes

    Certification & Approvals:
    Certification: CE, EAC, ROHS
    IP: IP20
