Mikrotik CCR1016-12G Gx16 CPU 2GB 12xGbit LAN case L6
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:
Mikrotik CCR1016-12G Gx16 CPU 2GB 12xGbit LAN case L6
Mikrotik CCR1016-12G 1U rackmount, 12x Gigabit Ethernet, LCD, 16 cores x 1.2GHz CPU, 2GB RAM, 17.8mpps fastpath, Up to 12Gbit/s throughput, RouterOS L6
CCR1016-12G is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.
The Mikrotik CCR1016-12G cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

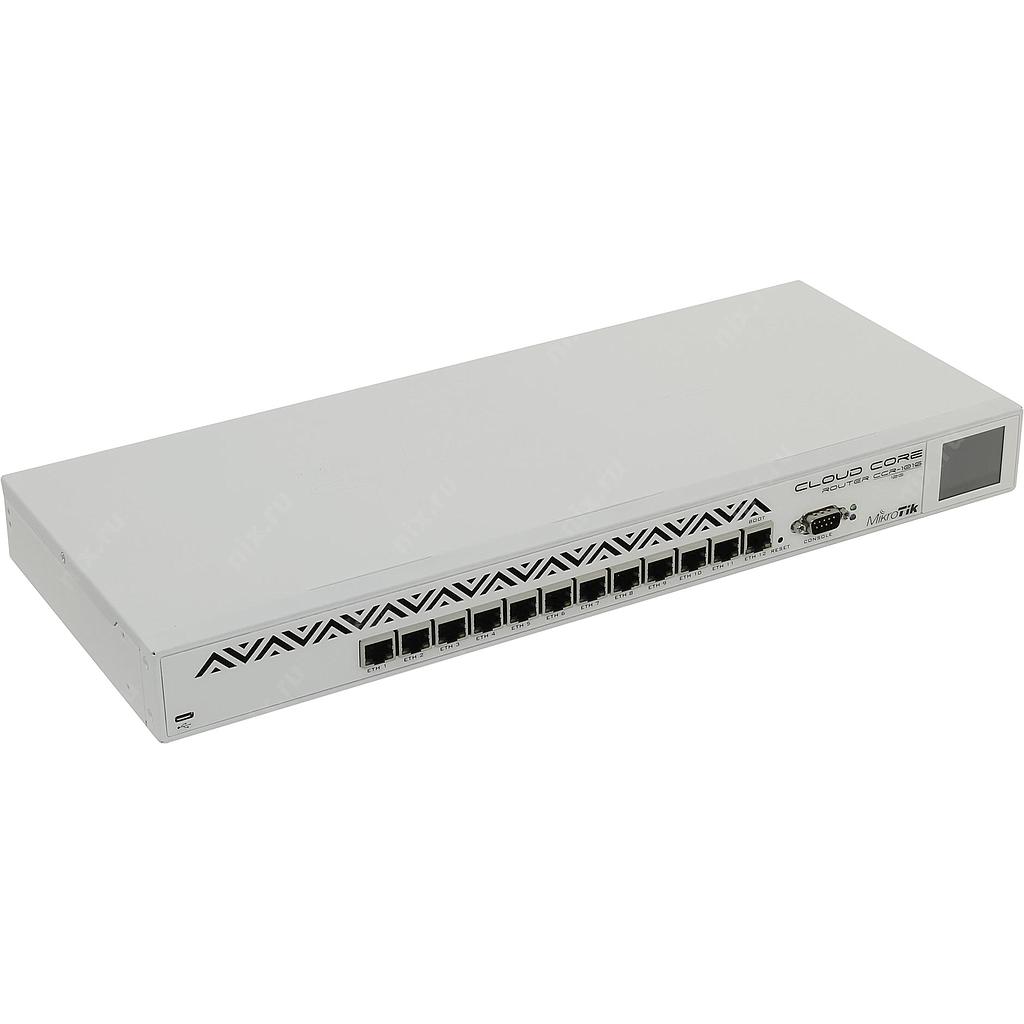

The Mikrotik CCR1016-12G is available with a 1U rackmount case, has twelve Gigabit ethernet ports, a serial console cable and a USB port. The CCR1016-12G has two SODIMM slots, by default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). It comes with power supply and 1U rackmount case.
| Details | |
|---|---|
| Product code | CCR1016-12G |
| Architecture | TILE |
| CPU | TLR4-01680 |
| CPU core count | 16 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 443 x 193 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 42 W |
| Max power consumption without attachments | 37 W |
| FAN count | 2 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 12 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
