MikroTik CCR1009-7G-1C-1S+PC 9 Core 2GB 1x Combo 1x SFP+ 7xGbit LAN OS L6 1U RM PC

Product Code: CCR1009-7G-1C-1S+PC

Barcode: 4752224001863

784.30 incl. GST 784.3000000000001 AUD 784.30

713.00


    This combination does not exist.

    Add to Cart Buy Now


    Share this product:

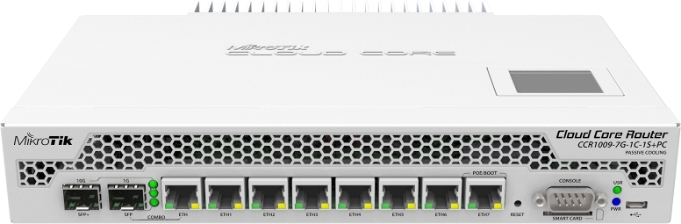

    MikroTik CCR1009-7G-1C-1S+PC Cloud Core Router OS L6


    MikroTik CCR1009-7G-1C-1S+PC 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1GHz CPU, 2GB RAM, LCD panel, passive cooling desktop enclosure, SmartCard slot, RouterOS L6, PSUdesktop enclosure, SmartCard slot, RouterOS L6, PSU.


    The new MikroTik CCR1009-7G-1C-1S+PC updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.


    No switch-chip - the MikroTik CCR1009-7G-1C-1S+PC now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.


    Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.


    100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.


    More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.


    This MikroTik CCR1009-7G-1C-1S+PC is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.


    MikroTik CCR1009-7G-1C-1S+PC also includes a LCD touchscreen, smart card slot, microSD and a SFP+ port for 10G connections.



    Specifications:

    Details

    Product code

    CCR1009-7G-1C-1S+PC

    Architecture

    TILE

    CPU

    TLR4-00980

    CPU core count

    9

    CPU nominal frequency

    1 GHz

    Dimensions

    272x190x47mm

    License level

    6

    Operating System

    RouterOS

    Size of RAM

    2 GB

    Storage size

    128 MB

    Storage type

    NAND

    Tested ambient temperature

    -20C .. +60C


    Powering:

    Details

    Max Power consumption

    33W

    PoE in

    Passive PoE

    PoE in input Voltage

    18-57 V

    Number of AC inputs

    1

    AC input range

    100-240

    Number of DC inputs

    2 (PoE-IN, DC jack)

    DC jack input Voltage

    18-57 V


    Ethernet:

    Details

    10/100/1000 Ethernet ports

    7

    Ethernet Combo ports

    1


    Fibre:

    Details

    SFP+ ports

    1


    Peripherals:

    Details

    Number of SIM slots

    1 Smart card (Mini SIM)

    Serial port

    RS232

    Number of USB ports

    1

    USB Power Reset

    Yes

    USB slot type

    microUSB type AB

    Max USB current (A)

    1


    Other:

    Details

    CPU temperature monitor

    Yes

    Current Monitor

    Yes

    PCB temperature monitor

    Yes

    Voltage Monitor

    Yes
