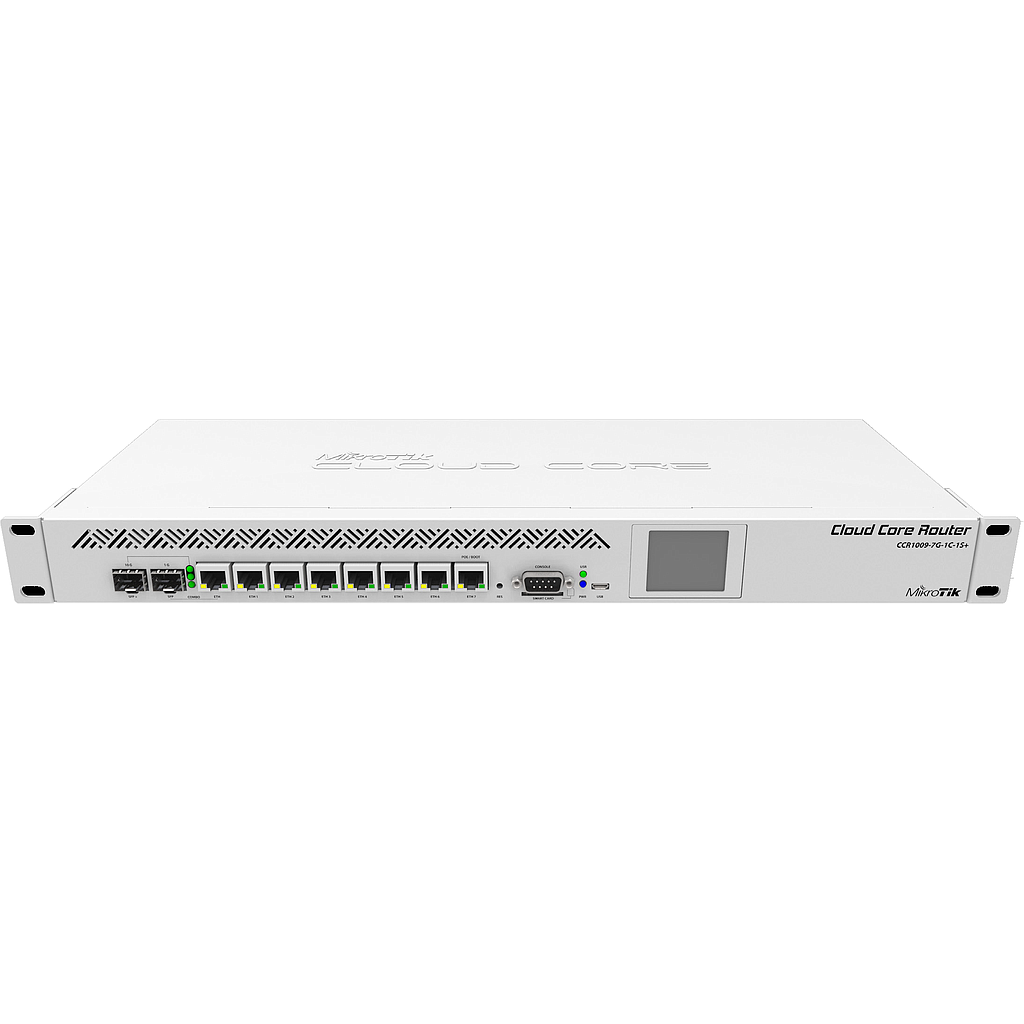

MikroTik CCR1009-7G-1C-1S+ 9 Core 2GB 1x Combo 1x SFP+ 7xGbit LAN OS L6 1U RM Dual-PS

Product Code: CCR1009-7G-1C-1S+

Barcode: 4752224001849

867.90 incl. GST 867.9 AUD 867.90


    This combination does not exist.

    Add to Cart Buy Now


    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.

    Share this product:

    MikroTik CCR1009-7G-1C-1S+ 9 Core 2GB 1x Combo 1x SFP+ 7xGbit LAN OS L6 1U RM Dual-PS

    The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

    Important changes:

    No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

    Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

    100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

    More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.Specifications


    Product code CCR1009-7G-1C-1S+

    Architecture TILE

    CPU TLR4-00980

    CPU core count 9

    CPU nominal frequency 1.2 GHz

    Dimensions 443 x 175 x 44 mm

    RouterOS license 6

    Operating System RouterOS

    Size of RAM 2 GB

    Storage size 128 MB

    Storage type NAND

    MTBF Approximately 200'000 hours at 25C

    Tested ambient temperature -20°C to 60°C

    IPsec hardware acceleration Yes


    Number of AC inputs 2

    AC input range 100-240

    Number of DC inputs 1 (PoE-IN)

    Max power consumption 39 W

    Max power consumption without attachments 34 W

    Cooling type 2

    PoE in Passive PoE

    PoE in input Voltage 15-57 V


    10/100/1000 Ethernet ports 7

    Ethernet Combo ports 1


    SFP+ ports 1


    Number of SIM slots 1 Smart card (Mini SIM)

    Memory card type microSD

    Memory Cards 1

    Serial console port RS232

    Number of USB ports 1

    USB Power Reset Yes

    USB slot type microUSB type AB

    Max USB current (A) 1
