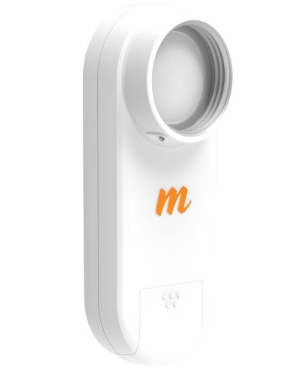

Mimosa C5x 4.9-6.4GHz 8dBi Radio for PTMP/PTP
Product Code: C5x
Mimosa C5x 4.9-6.4GHz 8dBi Radio for PTMP/PTP
Mimosa C5x (100-00085) is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps.
Product Features:
Four Twist-On, Flexible Antenna Options
PTP or PTMP Modes (feature key may be required)
Extended Frequency 4.9–6.4 GHz
Best-in-Class Noise Immunity
Ultra Rugged
Low-Power Consumption
Ultra Reliable
Gigabit Ethernet: 10/100/1000-Base-T
Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI
Performance:
Max Throughput:
PTP: 700 Mbps IP (866 PHY)
PTMP: 500 Mbps IP (866 PHY)
Wireless Protocols: Mimosa SRS; WiFi Interop
Modes: PTP Backhaul (requires feature key); PTMP Client
Radio:
MIMO and Modulation: 2x2:2 MIMO OFDM, up to 256 QAM
Bandwidth: 20/40/80 MHz channels, tunable to 5 MHz increments for Mimosa SRS and WiFi Interop mode
Frequency Range: PTP/PTMP: 4900–6400 MHz (restricted by country of operation)
Max Output Power: 27 dBm
Sensitivity (MCS0):
87 dBm @ 80 MHz
90 dBm @ 40 MHz
93 dBm @ 20 MHz
Power:
Max Power Consumption: 9.2 W average; 12.9 W max
System Power Method: Passive POE (24-56 VDC)
PoE Power Supply: Passive POE compliant, 24-56 V
Power over Ethernet supply (not included)
Dimensions:
Height: 175 mm (6.89”)
Width: 70 mm (2.75”)
Depth: 61 mm (2.40”)
Weight: 0.37 kg (0.82 lbs)
RF Connector Type: Mimosa N5-X twist-on
Enclosure Characteristics: Outdoor, die-cast aluminum, UV stabilized paint
Mounting: Dual attached pole mount straps
Environmental:
Outdoor Ingress Protection Rating: IP55
Operating Temperature: -40°C to +55°C (-40°F to 131°F)
Operating Humidity: 5 to 100% condensing
Operating Altitude: 4,420 m (14,500’) max
Shock & Vibration: ETS 300-019-2-4 class 4M5
Other Specifications:
Gain: 8dBi
Polarisation: Dual-slant 45deg;
Beamwidth, Symmetric (3 dB): 58deg;&
Front-to-back Ratio: 21dB
Front-to-Side Ratio (min): 21dB
Wind Loading 2.79 kg @ 160 km/h (6.14 lbs @ 100 mph)
