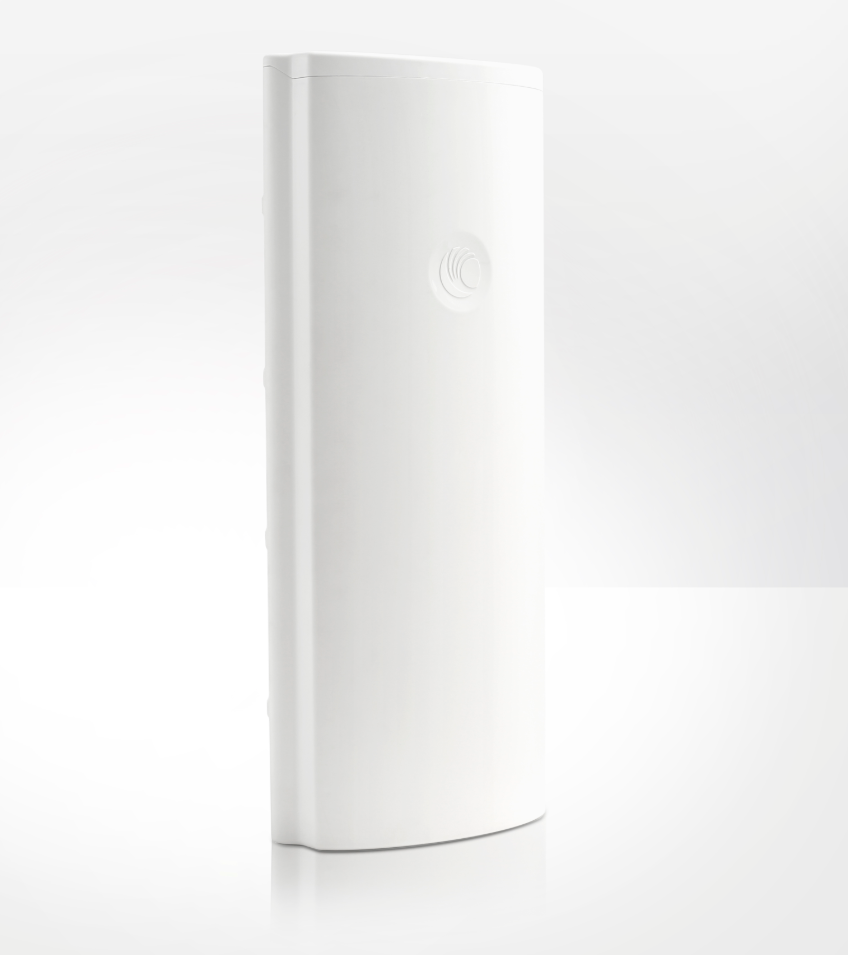

Cambium Networks C050910D301A ePMP 4x4 MU-MIMO 17dBi Sector Antenna (for ePMP3000AP)
Cambium Networks
Cambium Networks provides professional grade fixed wireless broadband and microwave solutions for customers around the world. Our solutions are deployed in thousands of networks in over 153 countries, with our innovative technologies providing reliable, secure, cost-effective connectivity that's easy to deploy and proven to deliver outstanding metrics.
Share this product:
Cambium Networks C050910D301A ePMP 4x4 MU-MIMO 17dBi Sector Antenna (for ePMP3000AP)
Product Features:
• 17dBi Gain
• 4.9 to 5.97GHz Spectrum
• 30dBi Front to Back Ratio
• IP 65 Ruggedisation
Product Specifications:
• Model Number C050910D301A
• Frequency Range 4.9 GHz to 5.97 GHz
• Gain 17 dBi
• 3 dB Beam-width - Azimuth 70 degrees
• 3 dB Beam-width - Elevation 6 degrees
• Electrical Downtilt -2 degrees
• Polarisation 2X Horizontal, 2X Vertical
• Model Number C050910D301A
• Port-to-Port Isolation > 20 dB
• Front-to-Back Ratio 30 dB
• Maximum Input Power 5 W
• Input Impedance 50 ohms
• Mounting Connectors 4 x RP SMA
• Mounting Hardware Included for mounting to mast diameters 2” to 4” (5 cm to 10 cm) -10 to +5 degree tilt
• Hardware included to connect ePMP access point to back of antenna body
• Physical Dimensions Antenna Body: 23.4” (H) x 9.6” (W) x 3.25” (D) (594 mm x 157 mm x 110 mm)
• Weight Antenna Body: 8.0 lbs, 3.7 kg w/ ePMP 3000 Access Point and Mounting Brackets: 13.8 lbs. 6.3 kg
• Environmental IP65
• Radome Material UV Protected ABS
• Operating Temp -400C to 600C (-400F to 1400F)
Product Includes:
(1) ePMP 3000 Sector Antenna
(1) User Manual
