Platinum Tools 202010J EZ-RJ45® Cat6 Connector 100 pcs
Platinum Tools
Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner.
Share this product:

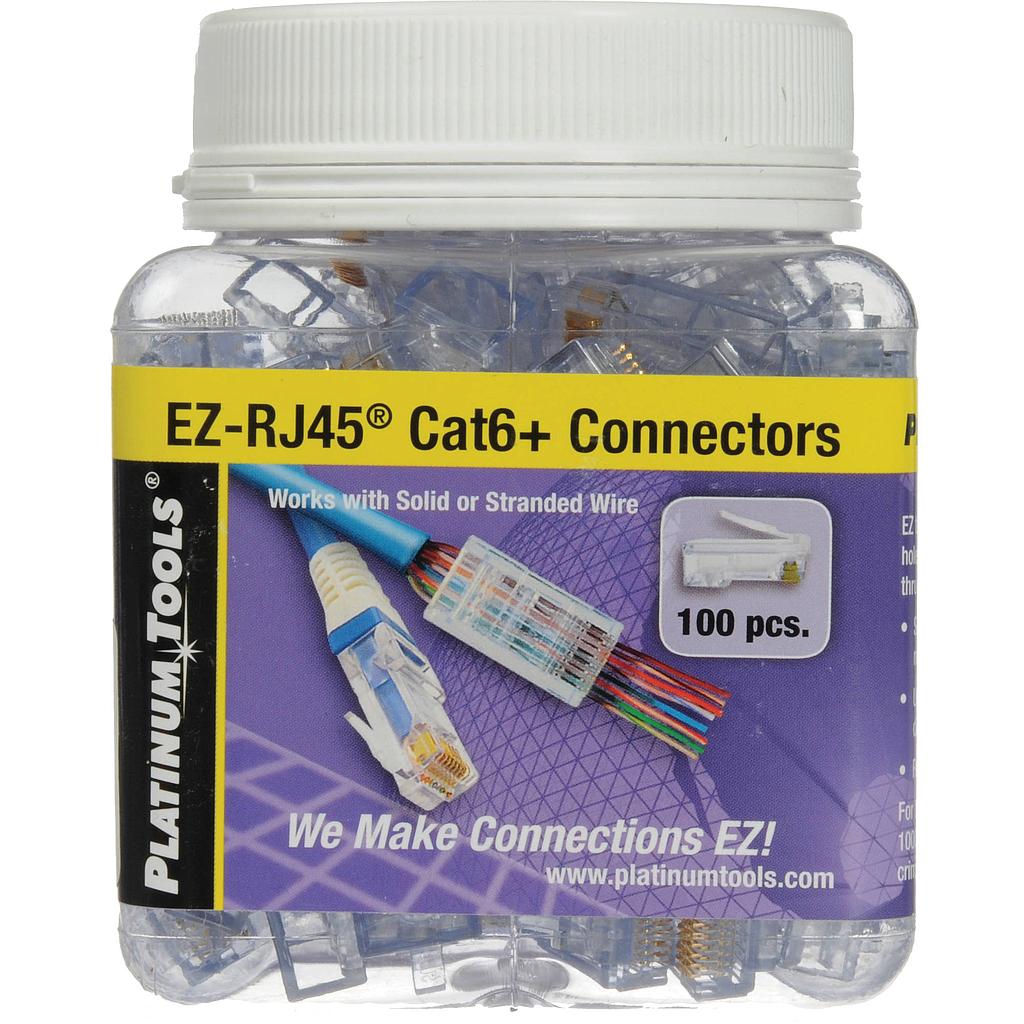

Platinum Tools 202010J EZ-RJ45® Cat6 Connector 100 pcs
Product Code: 202010J
The Original EZ-RJ45 CAT6 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized.
Recommended for Data Applications Only
Rated to 1 Gb
Crimp with one of the Platinum Tools EZ-RJ45 Crimp Tools.
*Part Numbers 100062, 100054 or 100004
Max Cable Outer Diameter: 0.275” (6.98mm)
Max Insulation Diameter (Conductors): 0.040” (1.016mm)
Meets ANSI/EIA/TIA/TAA specifications
UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant
Solid or Stranded, 24 – 23 AWG
50 micron gold plated contacts
Color: Clear/Transparent
Made in USA
