Platinum Tools 100029C ezEX48 50 Pack
Platinum Tools ezEX48 unshielded pass-through RJ45 connectors for Cat6/Cat6A cable — 50-piece retail clamshell.
Platinum Tools
Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner.
Share this product:
Platinum Tools 100029C ezEX48 Connector — 50 Pack

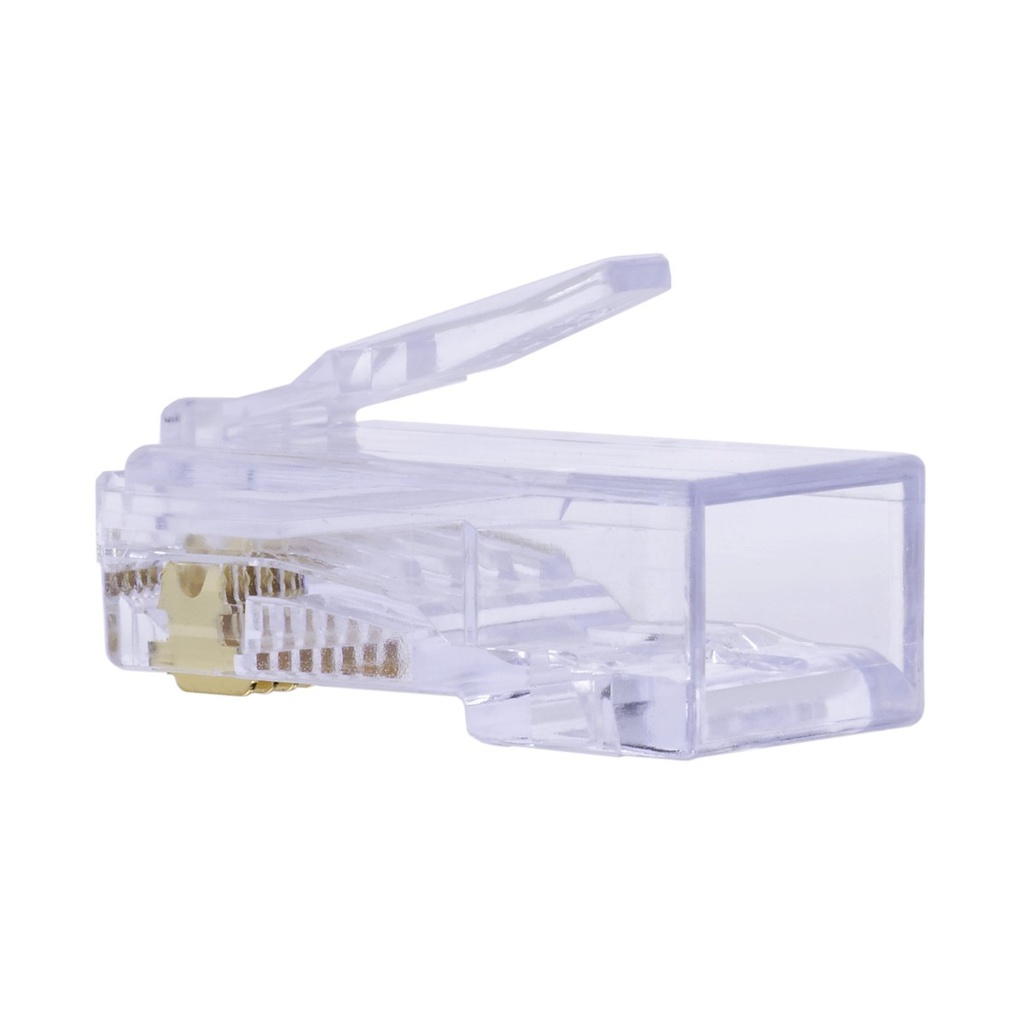

The Platinum Tools 100029C ezEX48 is an unshielded, pass-through RJ45 connector for professional Cat6 and Cat6A terminations. The 50-piece retail-ready clamshell is designed for larger-conductor cable and makes it easy to verify conductor order before crimping.
Key benefits

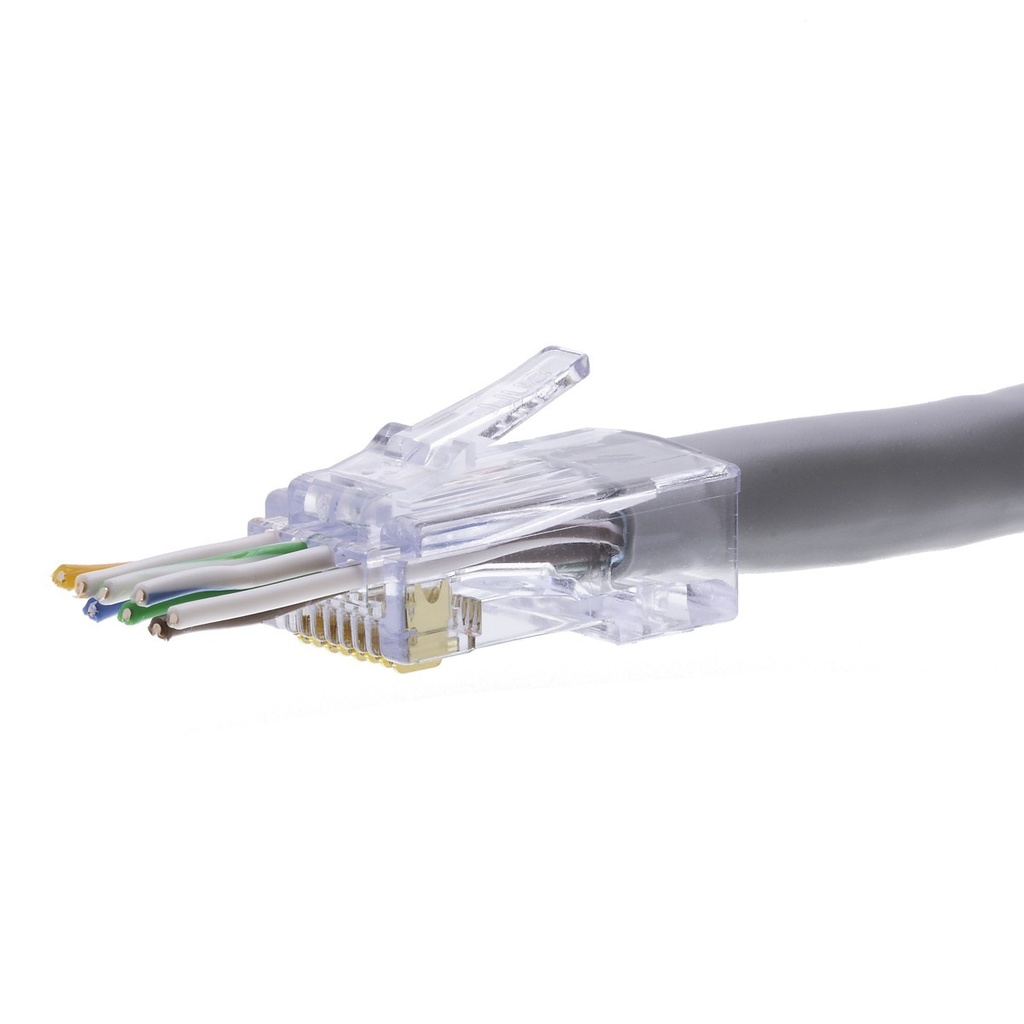

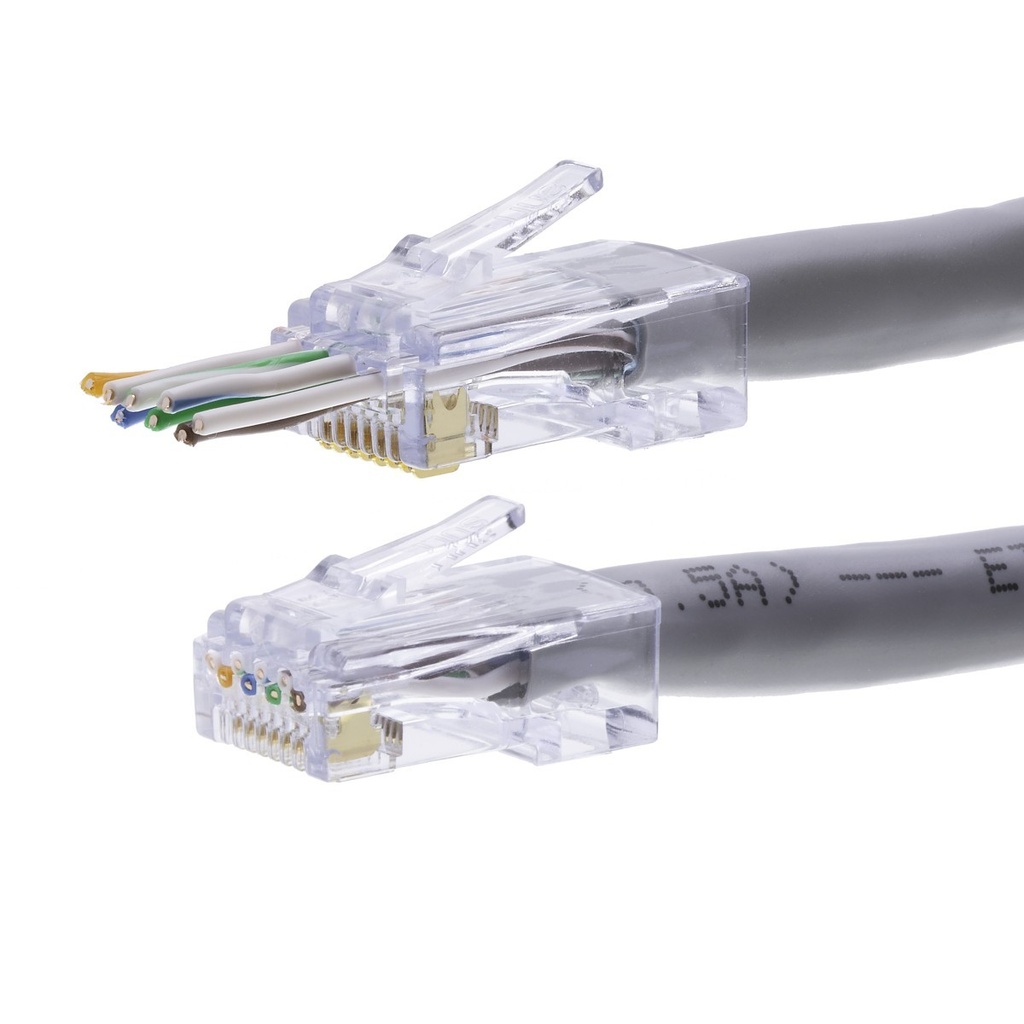

- ezEX48 pass-through design: conductors pass through the front for visual wiring verification before termination.
- Built for larger conductors: suited to 0.043–0.048 in (1.09–1.22 mm) conductor insulation diameter.
- Unshielded RJ45: clear polycarbonate construction for Cat6 and Cat6A cabling.
- Reliable termination: integrated Hi-Lo stagger load bar isolates conductors; 50-micron gold-plated contacts.

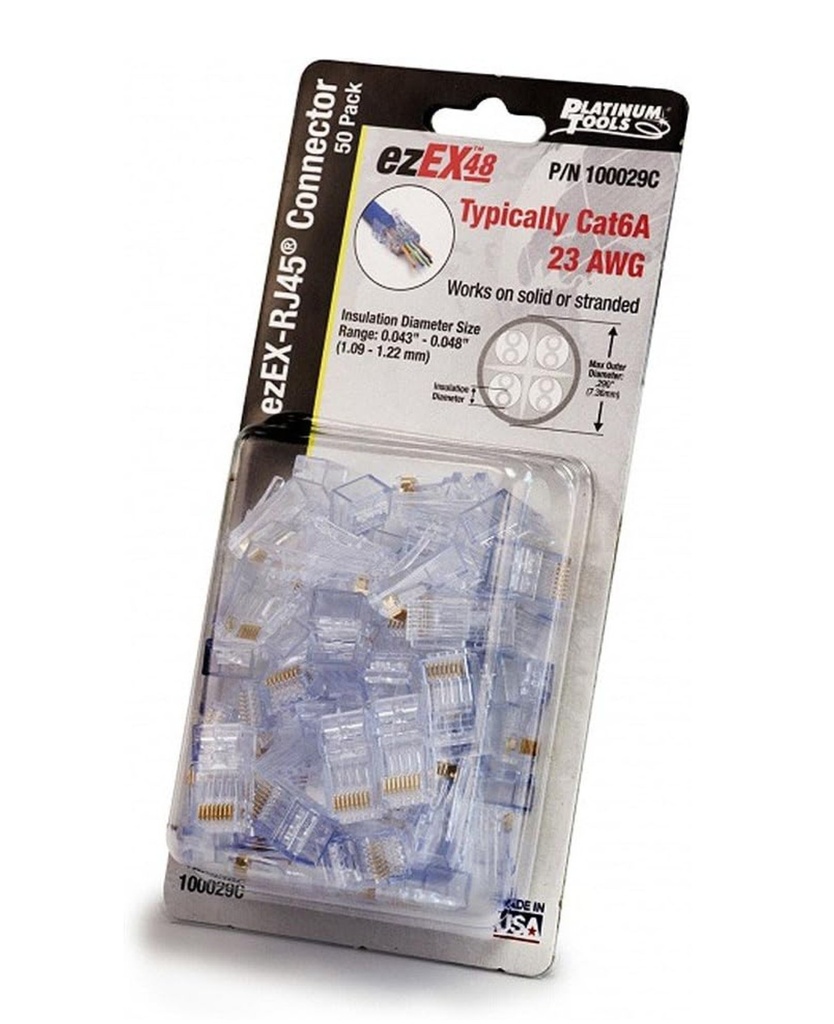

- Retail-ready pack: 50 connectors in clamshell packaging.
Ideal for
Structured cabling, PoE/PoE+ and data installations using solid or stranded 24–22 AWG Cat5e, Cat6 or Cat6A cable within the specified conductor and overall-diameter limits.
Specifications
- Product code: 100029C
- Series: ezEX48
- Connector type: RJ45, pass-through
- Shielding: Unshielded
- Material: Polycarbonate
- Colour: Clear
- Compatibility: Cat6 / Cat6A
- Conductor insulation diameter: 0.043–0.048 in (1.09–1.22 mm)
- Maximum cable OD: 0.290 in (7.36 mm), unshielded
- Conductor range: Solid or stranded 24–22 AWG
- Contacts: 50-micron gold plated
- Pack quantity: 50
Compatible termination system
For ezEX-RJ45 connectors, Platinum Tools recommends the EXO Crimp Frame with EXO-EX Die (100061C).
Frequently asked questions
Is the 100029C connector shielded?
No. It is an unshielded ezEX48 RJ45 connector.
What cable size is it designed for?
It is designed for cables with 0.043–0.048 in (1.09–1.22 mm) conductor insulation diameter and up to 0.290 in (7.36 mm) overall diameter for unshielded cable.
How many connectors are included?
The retail-ready clamshell contains 50 connectors.
